74LS04 Hex Inverter IC
1.98RON
Ex Tax: 1.98RON
- Stock: In Stock
- Model: A1604.74LS04
Your orders placed until 16:30 on weekdays are shipped on the same day.
Tags:
Integrated Circuit
, Logic Gates
, Inverter
, Hex Inverter
, TTL
, Digital Electronics
, CMOS
, Signal Processing

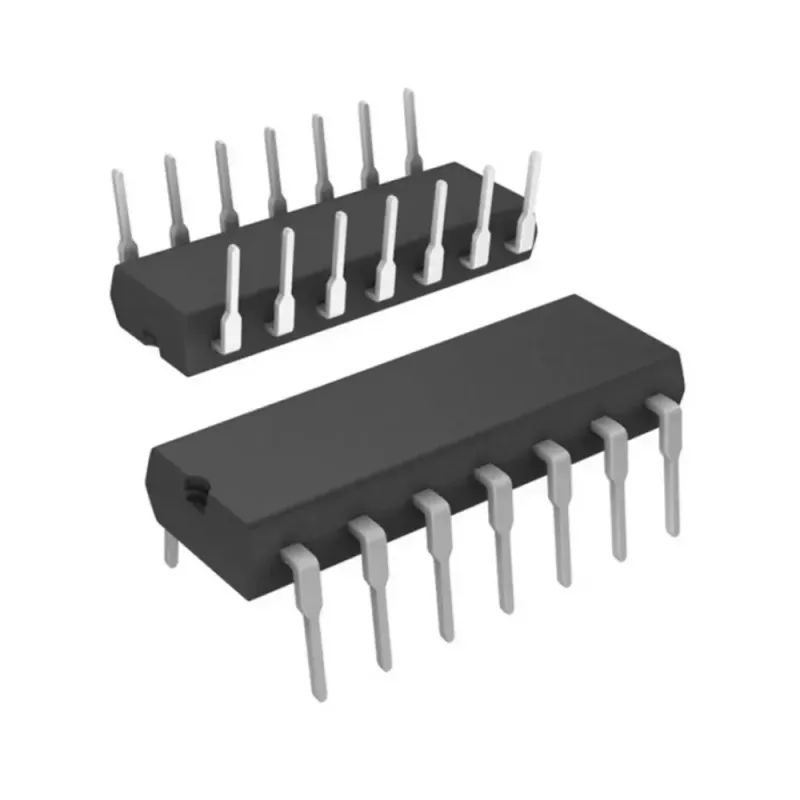

74LS04 Hex Inverter IC – DIP Package
The 74LS04 is a low-power Schottky TTL integrated circuit containing six independent NOT gates (inverters). It is widely used in digital logic systems to perform signal inversion.
? Key Features
- ? Logic Type: Hex Inverter (6 NOT gates)
- ⚡ Operating Voltage: 4.75V to 5.25V (typically 5V)
- ⚙️ Technology: TTL – Low Power Schottky
- ? Package: 14-pin DIP (Dual Inline Package)
- ? Propagation Delay: Fast switching speeds for improved performance
- ✅ Logic Compatibility: TTL compatible inputs and outputs
? Applications
- Signal inversion in logic circuits
- Digital logic control systems
- Microcontroller interfaces
- Oscillator and timing circuits
? Package Includes
- 1 × 74LS04 Hex Inverter IC – DIP Package
The 74LS04 is ideal for signal inversion and logic level control in digital systems, offering reliable performance in a compact DIP package.
