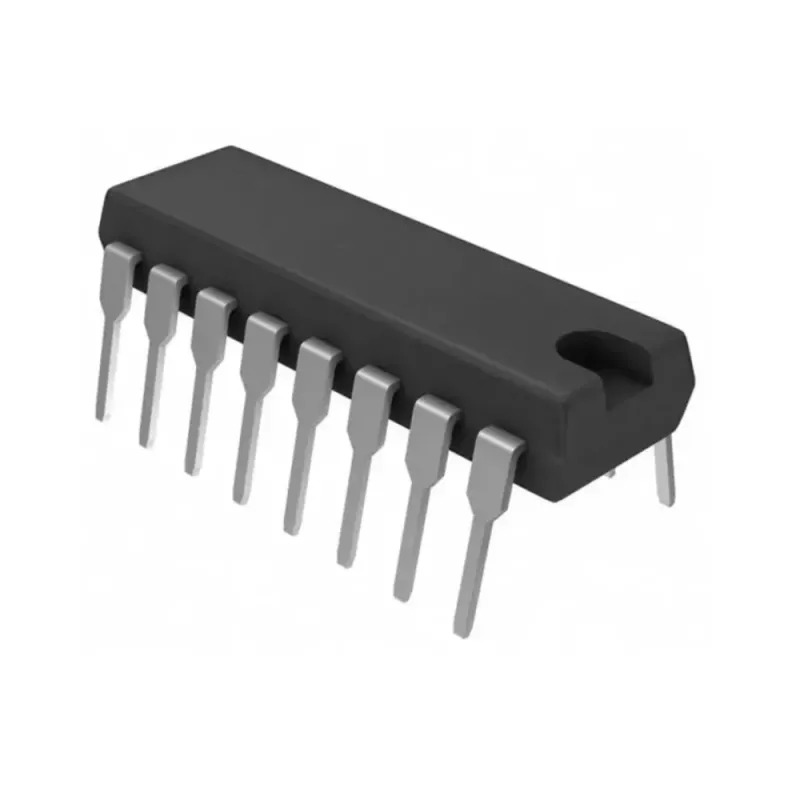

74LS76 Dual JK Flip-Flop with Clear and Preset IC
4.00RON
Ex Tax: 4.00RON
- Stock: In Stock
- Model: A1608.74LS76
Your orders placed until 16:30 on weekdays are shipped on the same day.
Tags:
Integrated Circuit
, Flip Flop
, Dual JK
, Clear and Preset
, 74LS76
, Digital Logic
, TTL Logic
, Synchronous Counter
74LS76 Dual JK Flip-Flop with Clear and Preset – DIP Package
The 74LS76 is a dual JK-type flip-flop featuring independent J, K, clock, clear, and preset inputs. Each flip-flop is positive-edge triggered and includes asynchronous clear and preset inputs, making it suitable for complex timing and control applications.
? Key Features
- ? Logic Type: Dual JK Flip-Flop with Clear and Preset
- ⚡ Operating Voltage: 4.75V to 5.25V (typical 5V)
- ⏱️ Triggering: Positive-edge triggered
- ? Asynchronous Clear and Preset: Provided for each flip-flop
- ? Package: 16-pin DIP (Dual Inline Package)
- ✅ Logic Compatibility: TTL-compatible inputs and outputs
? Applications
- Toggle circuits
- Frequency division
- Binary counters
- Control systems
? Package Includes
- 1 × 74LS76 Dual JK Flip-Flop with Clear and Preset – DIP Package
The 74LS76 provides reliable performance for flip-flop-based control and memory circuits in digital electronics.
