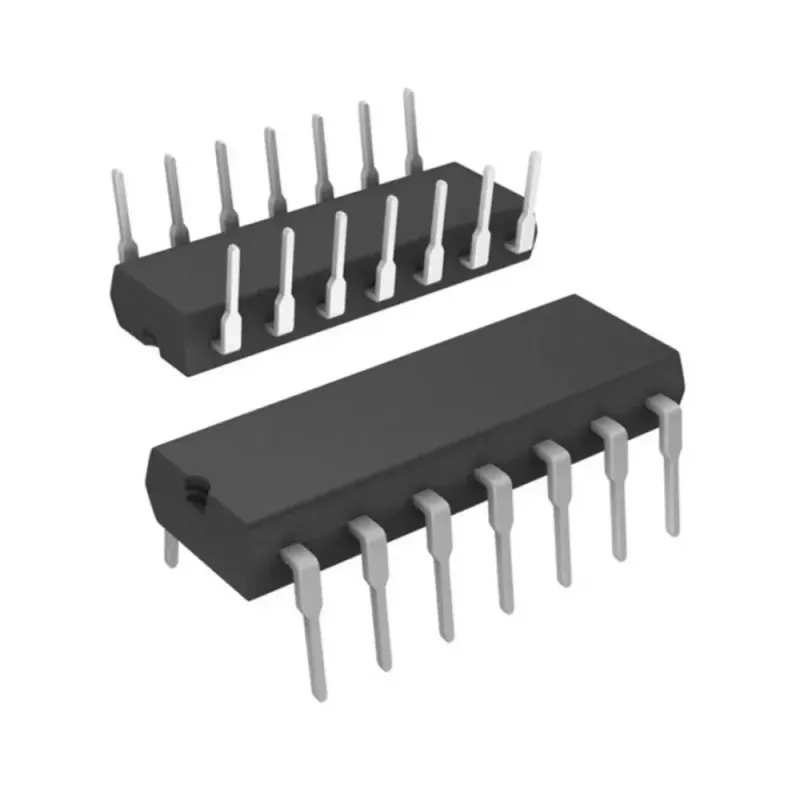

CD4093 Quad 2-Input NAND Schmitt Trigger – DIP Package

The CD4093 is a CMOS integrated circuit containing four independent NAND gates with Schmitt trigger inputs. This IC combines the NAND gate logic function with Schmitt trigger action for noise immunity and clean switching, making it ideal for waveform shaping and signal conditioning.

? Key Features

• ? Function: Quad 2-input NAND gates with Schmitt trigger inputs
• ⚡ Operating Voltage Range: 3V to 15V
• ? Logic Family: CMOS with Schmitt trigger inputs
• ? Package Type: 14-pin DIP (Dual Inline Package)
• ?️ High noise immunity due to Schmitt trigger inputs
• ? Suitable for waveform shaping, debouncing switches, and clean signal transitions

? Applications

• Waveform shaping and pulse generation
• Debouncing mechanical switches
• Oscillators and timers
• Noise filtering in digital circuits

? Package Includes

• 1 × CD4093 Quad 2-Input NAND Schmitt Trigger IC – DIP Package

The CD4093 is widely used in digital electronics where noise immunity and clean switching behavior are important.
