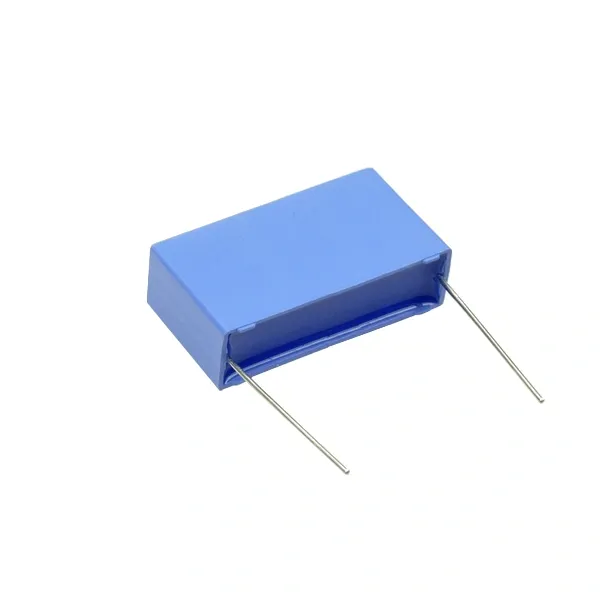

1.5nf 1500V Polypropylene Film Capacitor FKP 0.0015uF

The FKP Polypropylene Film Capacitor with a capacitance of 1.5nF (0.0015µF) is designed to function optimally at a voltage rating of 1500V DC. This makes it an ideal choice for high-voltage applications where stability, low energy loss, and dependability are paramount. Typical applications include snubber circuits, pulse circuits, and high-frequency filtering.

Technical Specifications:

• Capacitance: 1.5nF (0.0015µF)
• Voltage Rating: 1500V DC
• Tolerance: ±5%
• Pin Spacing (Pitch): 22mm
• Type: FKP (Polypropylene Film)
• Material: Polypropylene film, recognized for its high dielectric strength, low dissipation factor, and stability

Constructed using polypropylene film, this capacitor offers superior insulation resistance, minimal energy loss, and stable capacitance even under high voltage and frequency conditions. The 22mm pin spacing allows for easy incorporation into a variety of circuit designs. It is especially suitable for use in power supplies, industrial electronics, and audio applications, where long-term performance and reliability are required for precision-sensitive applications.
