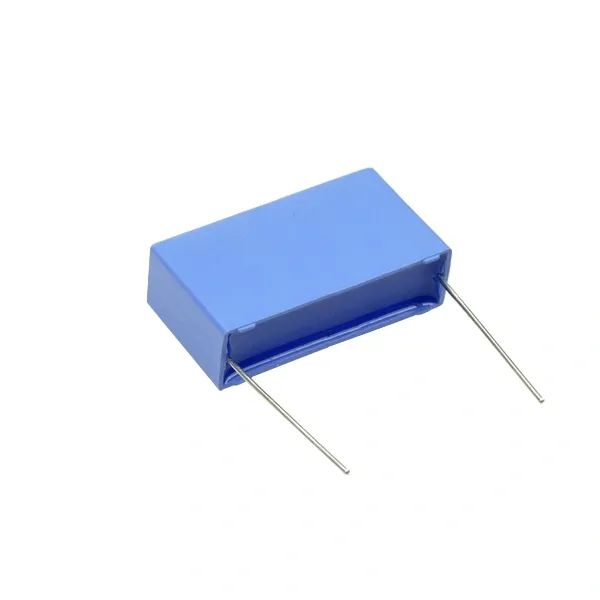

1nf 2000V Polypropylene Film Capacitor MKP 0.0001uF

The MKP Polypropylene Film Capacitor, with a capacitance of 1nF (0.001µF), is designed to withstand up to 2000V DC. This makes it an excellent option for high-voltage applications that require stability and reliability, including snubber circuits, pulse circuits, and high-frequency filtering.

Technical Specifications:

• Capacitance: 1nF (0.001µF)
• Voltage Rating: 2000V DC
• Tolerance: ±5%
• Pin Spacing (Pitch): 22mm
• Type: MKP (Metallized Polypropylene Film)
• Material: Polypropylene film

The capacitor's construction features a polypropylene film, ensuring excellent stability and low dissipation. Its metallized polypropylene film composition results in low loss, high insulation resistance, and stable capacitance, even under high voltage and frequency conditions. With a pin spacing of 22mm, it can be easily integrated into a variety of circuit designs.

Applications:

This capacitor is particularly suitable for use in power supplies, industrial electronics, and audio equipment, where precision, durability, and consistent performance are paramount.
