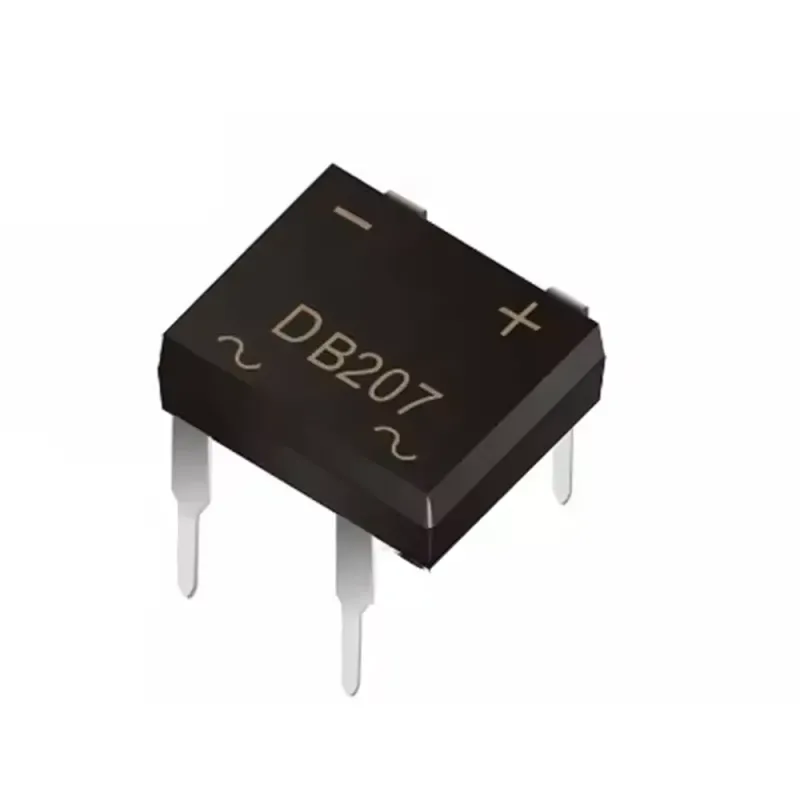

⚡ DB207 Bridge Rectifier Diode – 2A 1000V DIP Package

The DB207 Bridge Rectifier Diode is a compact and robust rectifying component capable of handling up to 2 Amps of current and withstanding reverse voltages up to 1000 Volts. Encased in a standard DIP package, this full-bridge rectifier is designed to efficiently convert AC input into DC output for a wide range of general-purpose power supply applications.

? Key Features

• ? Rated Current: 2A continuous
• ⚡ Peak Reverse Voltage (VRRM): 1000V
• ? Forward Voltage Drop (VF): Typically 1.1V per diode
• ? High Surge Current Capability: up to 50A
• ? Package Type: DIP (Dual In-line Package)
• ? Polarity: Clearly marked for easy circuit integration

? Typical Applications

• AC to DC conversion
• Power supply circuits
• Battery charging systems
• LED lighting drivers
• Home appliances and industrial equipment

? Package Includes

• 1 × DB207 2A 1000V Bridge Rectifier Diode (DIP)

Note: Ensure proper heat dissipation and observe maximum ratings during operation for optimal performance and longevity.
