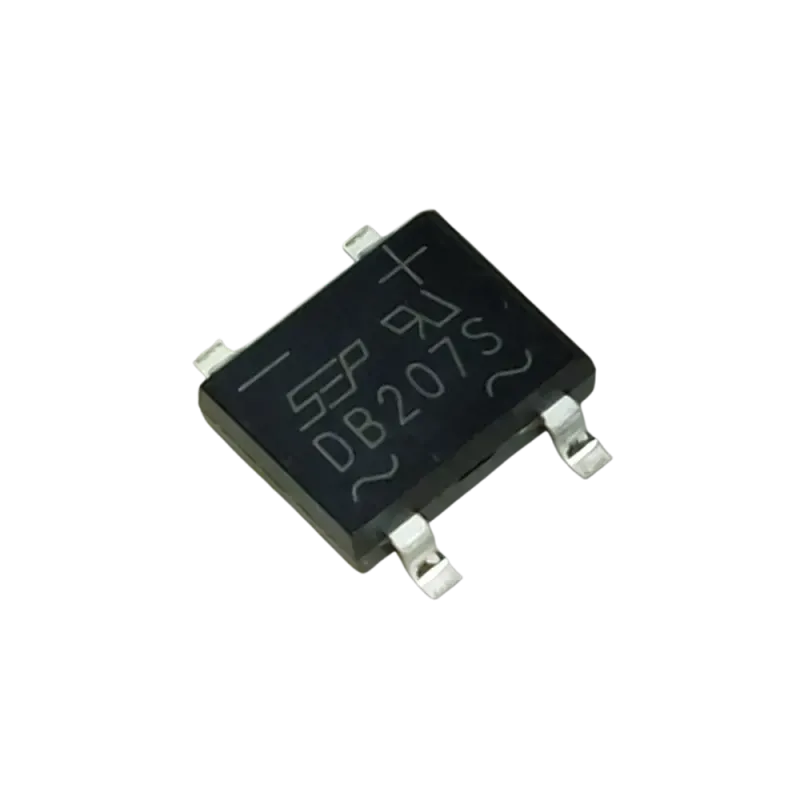

DB207S SMD Bridge Rectifier Diode – 2A 1000V Surface Mount
1.06RON
Ex Tax: 1.06RON
- Stock: In Stock
- Model: A1365.DB207S
Your orders placed until 16:30 on weekdays are shipped on the same day.
DB207S SMD Bridge Rectifier Diode – 2A 1000V Surface Mount
The DB207S Bridge Rectifier Diode is a compact 2 Amp surface-mount full-wave rectifier designed to handle up to 1000 Volts of reverse voltage. Packaged in a space-saving SMD format, it’s an excellent choice for high-density PCB layouts requiring efficient and reliable AC to DC conversion.
? Key Features
- ⚡ Maximum Repetitive Reverse Voltage (VRRM): 1000V
- ? Average Forward Current (Io): 2A
- ? Peak Surge Current (Ifsm): 50A
- ? Package Type: DB-S (SMD)
- ? Compact and thermally efficient design
? Typical Applications
- Switching power supplies
- Battery chargers
- LED lighting drivers
- Consumer electronics and industrial controls
- General-purpose AC to DC circuits
? Package Includes
- 1 × DB207S SMD Bridge Rectifier Diode – 2A 1000V
Note: Ideal for compact and high-efficiency rectification in surface-mount designs. Observe recommended heat dissipation guidelines during use.
