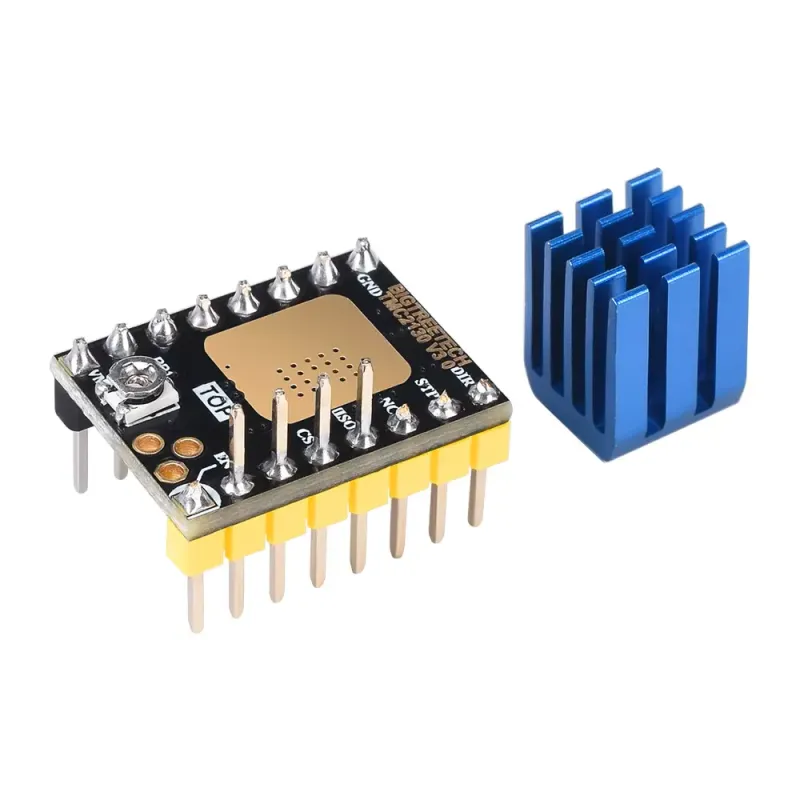

BIGTREETECH TMC2208 V3.0 UART Stepper Motor Driver
The BIGTREETECH TMC2208 V3.0 is a high-performance stepper motor driver designed for 3D printers and CNC machines. Equipped with advanced features like ultra-quiet operation and UART communication, it provides smooth and silent motion in all your projects.
- Buit-in Drive Current: 1.2A (2A peak)
- Microstepping: Up to 256 microsteps per full step (with interpolation)
- Voltage Range: 12V–24V DC
- Low RDSon: LS 280mΩ & HS 290mΩ (typ. at 25°C)
- Ultra-Quiet: Features stealthChop2 technology for nearly silent operation
- High-Speed Mode: spreadCycle mode for high dynamics and performance
- Single Wire UART: Enables advanced configuration directly from firmware
- Standalone Pulse Generator: For flexible application requirements
Main Features
- Configurable motor current and microsteps via firmware (UART mode)
- Dynamic switching between stealthChop2 and spreadCycle via UART
- Reduces standby current automatically for energy efficiency
- Easy potentiometer adjustment for manual current settings (STEP/DIR mode)
- Compatible with most 3D printer control boards
- Compact size: 20.32mm x 15.24mm x 10.54mm (without heatsink)
- Includes heatsink for improved heat dissipation
Modes of Operation
- STEP/DIR Mode: Plug-and-play; microsteps and current set by jumper and potentiometer
- UART Mode: Full control of driver settings (current, microsteps, chopper mode) via firmware and mainboard
Potentiometer Adjustment Instructions
- Rotate clockwise to reduce Vref and motor current
- Rotate counterclockwise to increase Vref and motor current
- Vref range: 0V – 2V (default: 1V ±0.2V)
- Always adjust while powered with 12V or 24V
Firmware & Compatibility
Compatible with popular open source firmware like Marlin (Marlin-bugfix-2.0). Supports both UART and standalone (plug-and-play) operation. Recommended for use with BIGTREETECH SKR series and similar mainboards.
Package Includes
- 1x BIGTREETECH TMC2208 V3.0 Driver Module
- 1x Heatsink
Notes:
- Ensure correct orientation and alignment when installing the driver to prevent damage
- Always provide adequate cooling (heatsink and fan recommended)
- For UART mode: careful soldering may be required to bridge pads
- Incorrect wiring or installation may damage the driver or your mainboard
Choose BIGTREETECH TMC2208 V3.0 for ultra-quiet, precise, and reliable stepper control in your next project!
