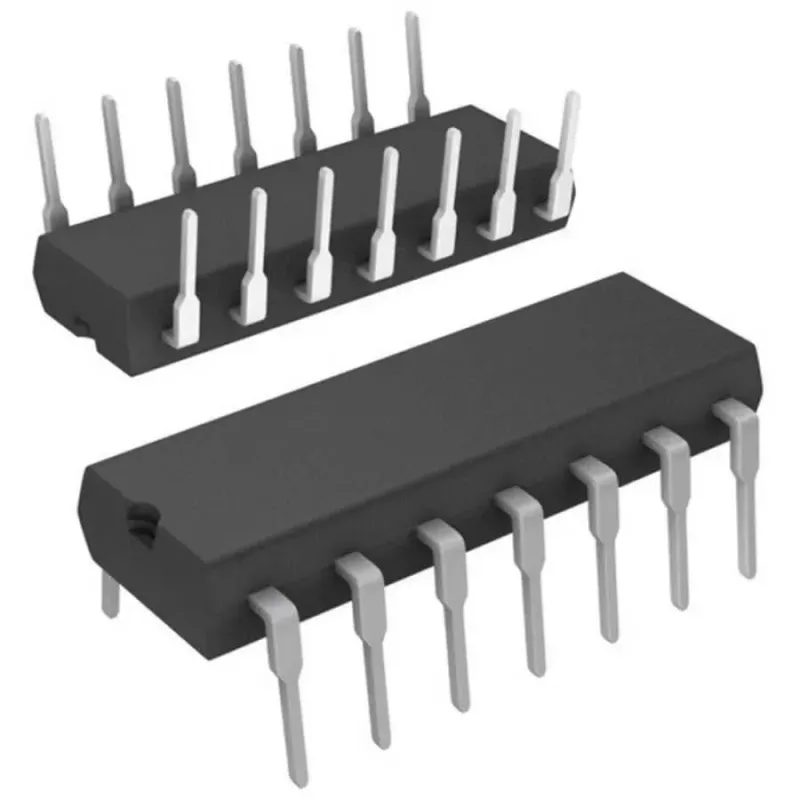

74HC10 Inverter and Gate Integrated Circuit
1.47RON
Ex Tax: 1.47RON
- Stock: In Stock
- Model: A0025.74HC10
Your orders placed until 16:30 on weekdays are shipped on the same day.
74HC10 Inverter and Gate Integrated Circuit
The 74HC10 DIP-14 Inverter and Gate IC is a high-speed Si-gate CMOS device, engineered to deliver the 3-input NAND function. It is designed to operate within a voltage range of 2 to 6V. Due to its versatility, this IC is suitable for a broad spectrum of applications.
Key Features
- Provides triple 3-input NAND gate functionality
- Compliant with JEDEC standard no. 7A
- Input levels are at CMOS level for 74HC10
- ESD protection: HBM JESD22-A114F exceeds 2000 V; MM JESD22-A115-A exceeds 200 V
- Available in multiple package options
Technical Specifications
- Operating Voltage: 2 to 6V
- Operating Temperature: -40 to +85 °C
- Power Dissipation Capacitance: 25 pF
- Output Drive Capability: 10 LSTTL loads
Potential Applications
- Logic gates
- Signal processing
- Computing systems
- Industrial control systems
- Home automation systems
