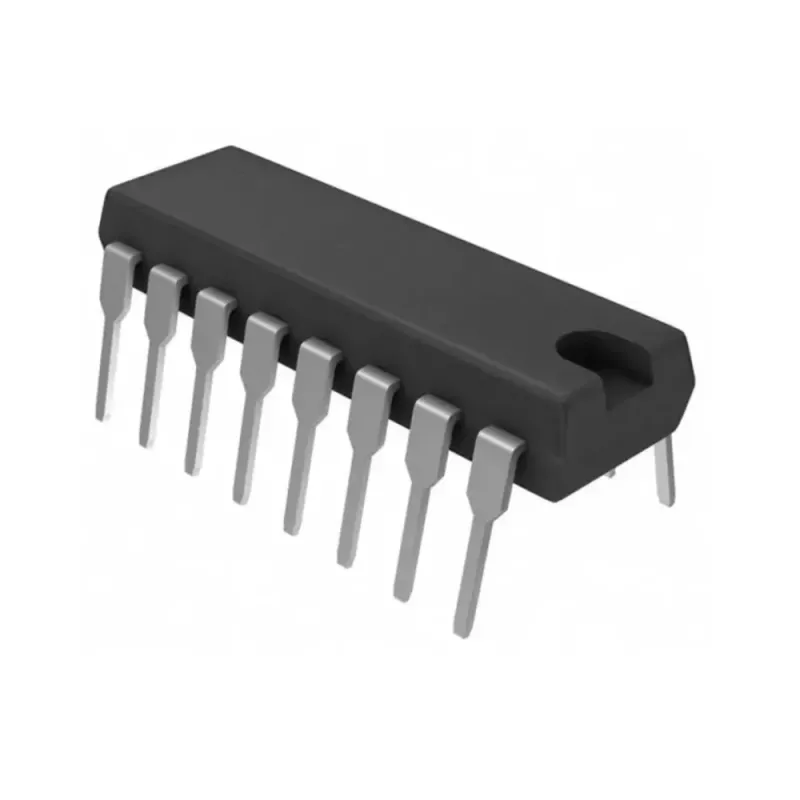

MAX232 Integrated Circuit – DIP Package

The MAX232 is a widely used dual driver/receiver that includes a capacitive voltage generator to supply RS-232 voltage levels from a single 5V supply. It is designed to convert signals from a microcontroller's TTL/CMOS logic levels to the RS-232 standard and vice versa, making it ideal for serial communication interfaces.

🔧 Key Features

• Converts TTL logic levels to RS-232 voltage levels
• Operates from a single 5V power supply
• Internal charge pumps eliminate the need for ±12V power supplies
• Two drivers and two receivers
• Standard DIP package for easy prototyping and integration
• High data rate up to 120 kbps

🧰 Applications

• RS-232 serial communication
• Microcontroller UART interfaces
• PC serial ports
• Embedded systems requiring serial data transfer

📦 Package Includes

• 1 × MAX232 IC in DIP package

The MAX232 IC is essential for adapting voltage levels between TTL and RS-232, ensuring reliable serial data communication in a compact, easy-to-use DIP form factor.
