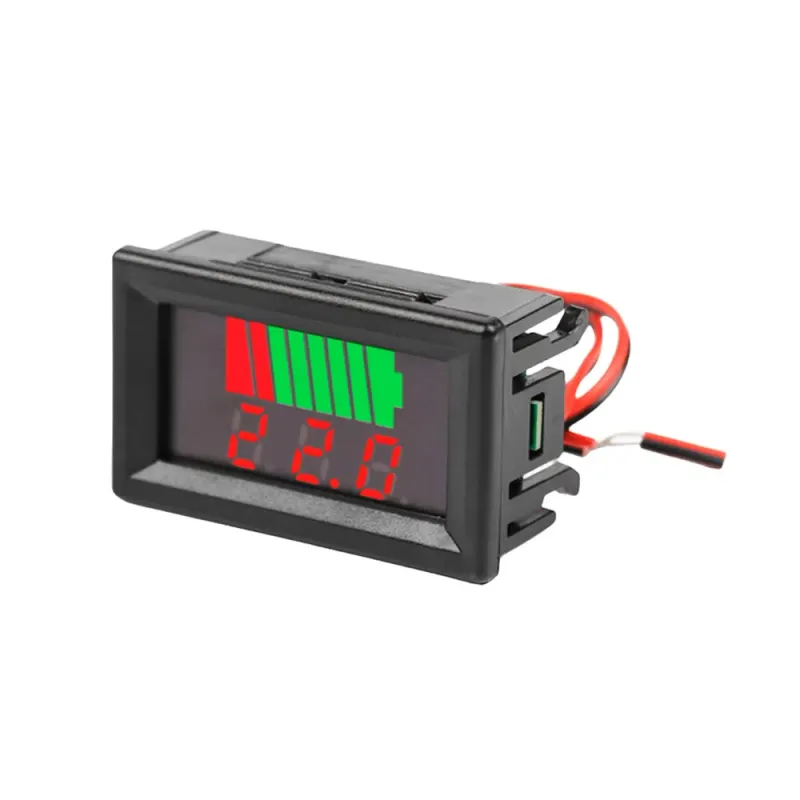

Car Battery Charge Level Indicator - 12V 24V 36V 48V 60V 72V (RED)

Monitor your battery status at a glance with the Car Battery Charge Level Indicator, designed for wide voltage ranges including 12V, 24V, 36V, 48V, 60V, and 72V. This versatile digital meter is compatible with lithium batteries, lead-acid batteries, polymer batteries, and nickel-metal hydride batteries, making it ideal for cars, motorcycles, electric bicycles, and more.

Key Features:

• Wide Voltage Compatibility: Works with battery systems from 6V up to 72V (suitable for systems under 96V).

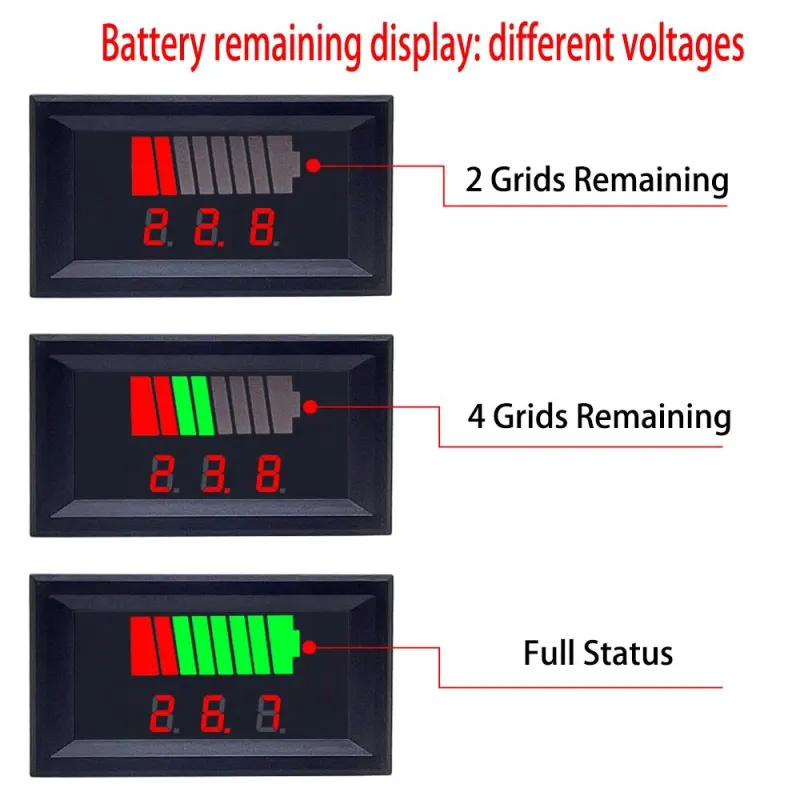

• Dual Display: Simultaneously shows battery level (8 bars) and real-time voltage via LED screen.
• Automatic Voltage Recognition: Automatically detects voltage and displays battery percentage accordingly.
• Color Coded Power Bars: 2 red and 6 green LEDs for quick visual battery status check.
• Reverse Connection Protection: Prevents damage due to accidental reverse wiring.
• Quick Refresh Rate: Updates every 300ms for accurate and real-time monitoring.

Technical Specifications:

• Voltage Range: 6V–72V (Auto-detect)
• Accuracy: ±1–2%
• Power Levels: 8 levels (10%, 25%, 40%, 50%, 60%, 75%, 90%, 100%)
• Working Current: 5–15 mA
• Refresh Speed: Every 300ms
• Display Type: 3-digit 0.56" LED (Red)
• Wire Length: Approx. 20cm
• Dimensions: 48 x 29 x 22 mm
• Mounting Hole: 46 x 27 mm
• Operating Temperature: -20℃ to +65℃

Application Range:

• 12V/24V/36V/48V/60V/72V Lead-Acid Batteries
• 36V/48V/60V Lithium Battery Packs
• Compatible with Lithium, Polymer, NiMH, and Car Batteries
• Perfect for Cars, Motorcycles, Electric Bikes, Scooters, Solar Systems

The Car Battery Capacity Meter is your reliable solution for precise battery monitoring, ensuring you never run out of power unexpectedly. Perfect for a wide range of DC battery-powered systems and equipment.
