24V 2 Channel Relay Module
9.98RON
Ex Tax: 9.98RON
- Stock: In Stock
- Model: C028.RM24V2CH
Your orders placed until 16:30 on weekdays are shipped on the same day.

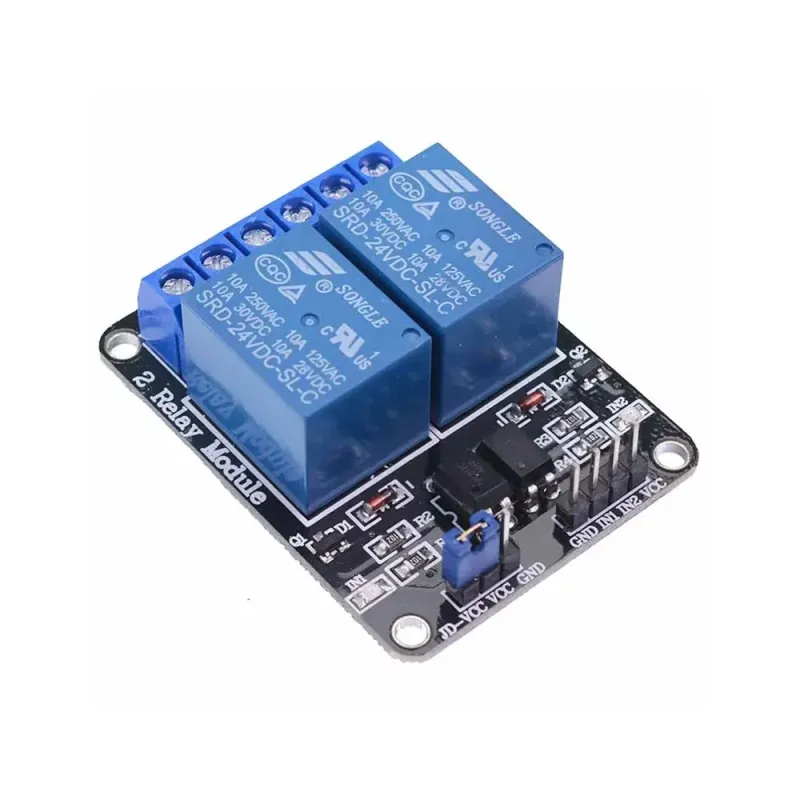

24V 2 Channel Relay Module – Opto-Isolated High Power Control for Arduino, Raspberry Pi
This 24V 2-channel relay module allows you to control high voltage devices using low voltage microcontrollers such as Arduino, Raspberry Pi, and PIC. The module uses opto-isolated inputs for safe and reliable operation, and supports both 5V and 3.3V logic levels.
⚙️ Key Features
- 2-channel relay module with active-low trigger
- Opto-isolated inputs for improved safety and noise immunity
- Compatible with 5V and 3.3V microcontrollers
- Each relay includes an LED indicator
- Durable and compact PCB design
? Technical Specifications
- Relay Operating Voltage: 24V
- Trigger Voltage: ≥ 1.5V
- Maximum Switching Voltage: 250VAC / 30VDC
- Maximum Switching Current: 10A
- Dimensions: 51mm x 39mm x 18mm (L x W x H)
✅ Applications
- Smart home automation
- Industrial control systems
- Microcontroller-based switching
- DIY electronics projects
? Package Includes
- 1x 24V 2-Channel Relay Module
