HZ-1050 125 kHz RFID Reader + 1 RFID Key Fob
The HZ-1050 RFID Reader Module is a simple and easy-to-use solution for RFID applications. Operating at a frequency of 125 kHz, this module comes with one RFID key fob and supports EM4001 64-bit RFID tags. It provides output in Wiegand format and is compatible with Arduino, Raspberry Pi, and other microcontroller platforms.
Communication speeds are adjustable via onboard jumpers, supporting 9600 bps and 19200 bps. The module also allows switching between Wiegand 26 and Wiegand 34 output formats. With an integrated connector on the antenna, the module can be securely and easily connected to your circuit.
Features:
- Operating Voltage: +5V
- Operating Frequency: 125 kHz
- Compatible with EM4001 64-bit RFID tags
- Adjustable communication speed: 9600 bps / 19200 bps
- Supports Wiegand 26 / Wiegand 34 formats via jumper
- Reading Range: 3 – 10 cm
- Interfaces: UART and TTL
- Easy to integrate with Arduino, Raspberry Pi, and other microcontrollers

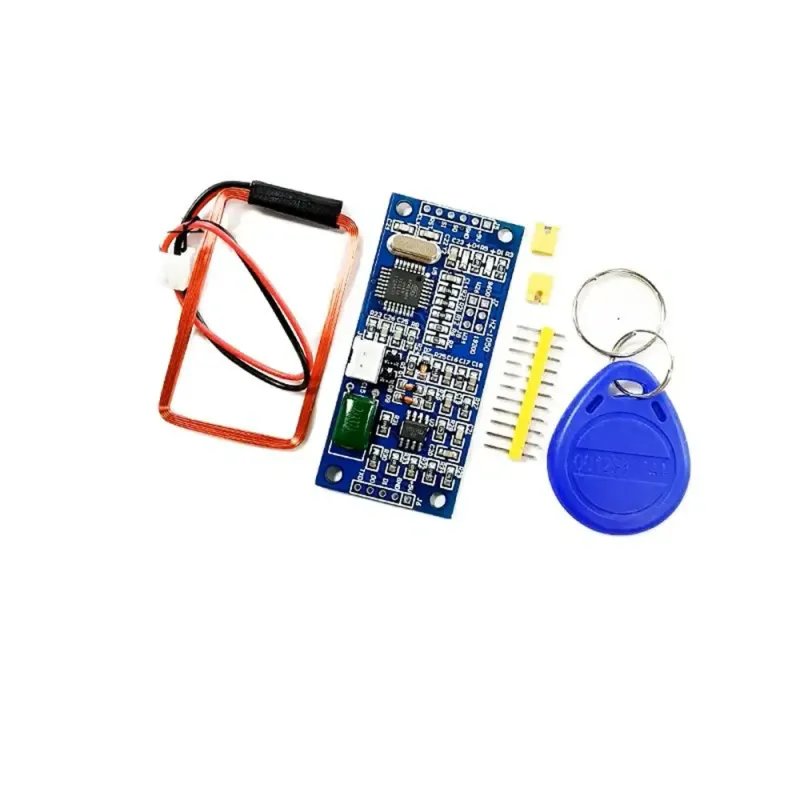

Package Includes:
- 1 x HZ-1050 125 kHz RFID Reader Module
- 1 x RFID Key Fob
Looking for additional RFID cards? Click here.
