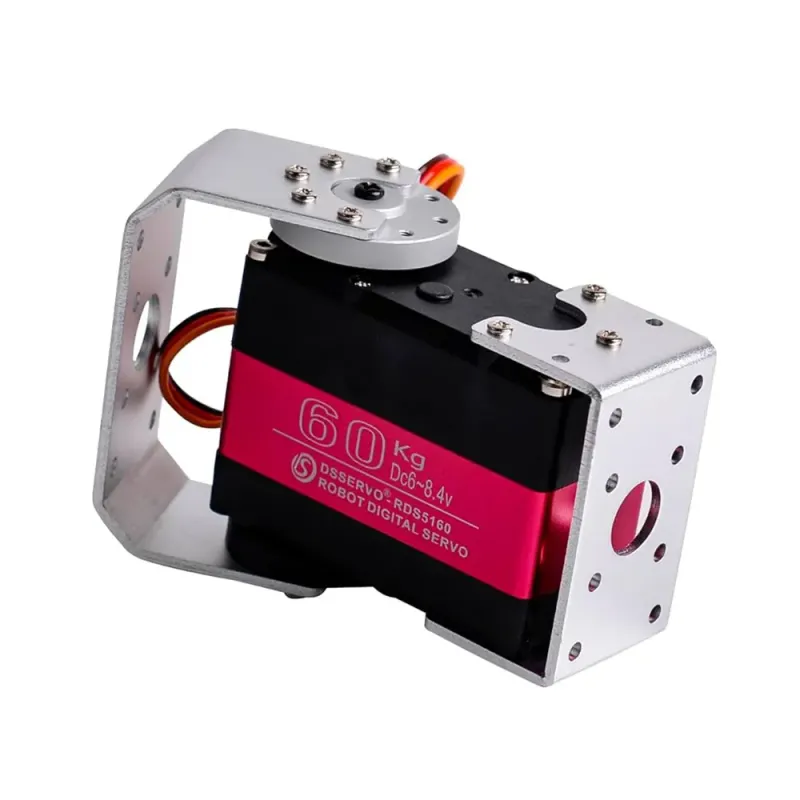

? RDS5160 60kg 180° Heavy-Duty Digital Servo Motor

The RDS5160 is a powerful and durable high-torque servo motor designed for demanding applications such as robotics, RC vehicles, and industrial automation. With up to 70kg·cm stall torque and full metal gear construction, it provides strength and precision where it matters most.

⚙️ Key Features

• ? Rotation Angle: 180° (mechanical angle: 360°)
• ⚡ Stall Torque:
  • 58 kg·cm @ 6V
  • 65 kg·cm @ 7.4V
  • 70 kg·cm @ 8.4V
• ? Operating Speed (No Load):
  • 0.17 sec/60° @ 6V
  • 0.15 sec/60° @ 7.4V
  • 0.13 sec/60° @ 8.4V
• ? Operating Voltage: 6 – 8.4V
• ?️ Control System: PWM (500 – 2500μsec)
• ? Neutral Position: 1500μsec
• ? Dead Band Width: 3μsec
• ? Operating Frequency: 50–330Hz
• ? Rotation Direction: Counter-clockwise (500–2500μsec)

?️ Mechanical Specifications

• ? Size: 65 × 30 × 48 mm
• ⚖️ Weight: 163g
• ⚙️ Gear Ratio: 279:1
• ? Bearings: Dual ball bearing
• ? Connector Wire: 300 ± 5mm
• ? Motor Type: 3-pole

? Extra Features

• ✅ Full metal gear for durability
• ? Programmable digital amplifier with MOSFET drive
• ? Axial mounting hole for flexible installation
• ? Low noise operation
• ? Compatible with Futaba, JR, and Hitec systems
• ? Includes: Long & short aluminum brackets, 18T servo horn, and circular angle holder (180° or 270° supported)

Perfect for robotic joints, high-load actuators, or any system that needs reliable high-torque rotation with smooth control.
