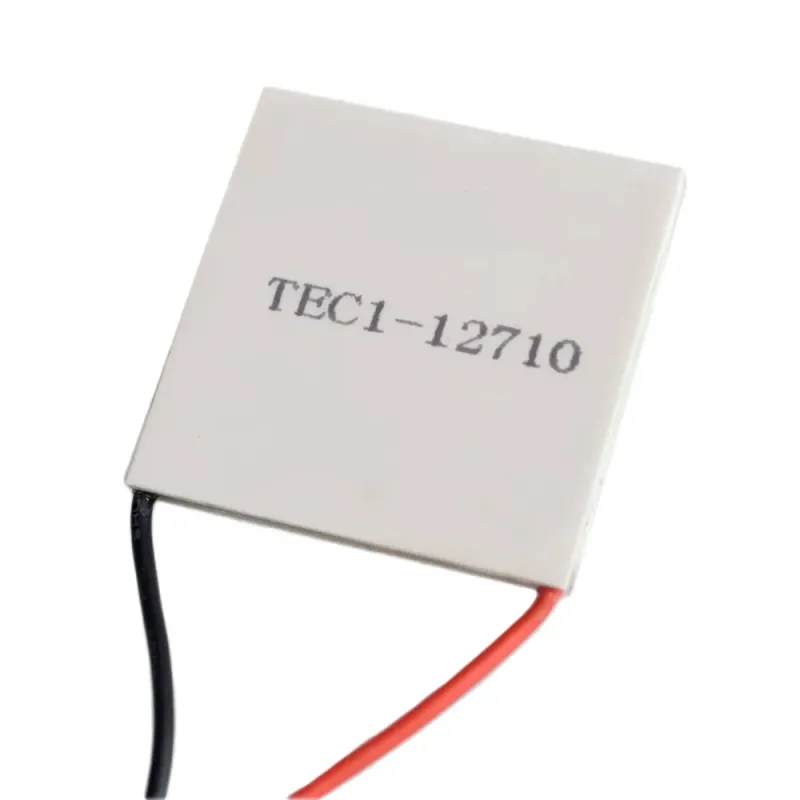

TEC1-12710 Peltier Thermoelectric Cooler Module

The TEC1-12710 is a high-performance thermoelectric cooling module based on Peltier technology. When powered with a DC voltage, one side of the module absorbs heat and becomes cold, while the other side dissipates heat and becomes hot. This solid-state cooling method provides silent operation and reliable performance without moving parts. It is ideal for applications requiring powerful and efficient cooling.

Key Features:

• High cooling capacity with 10A maximum current
• Compact and solid-state design
• No mechanical parts – maintenance-free and silent
• Can be used for both cooling and heating functions

Technical Specifications:

• Model: TEC1-12710
• Maximum Voltage (Vmax): 15.4V
• Rated Voltage: 12V DC
• Maximum Current (Imax): 10A
• Power Consumption: ~120W
• Maximum Temperature Difference (ΔTmax): 67°C

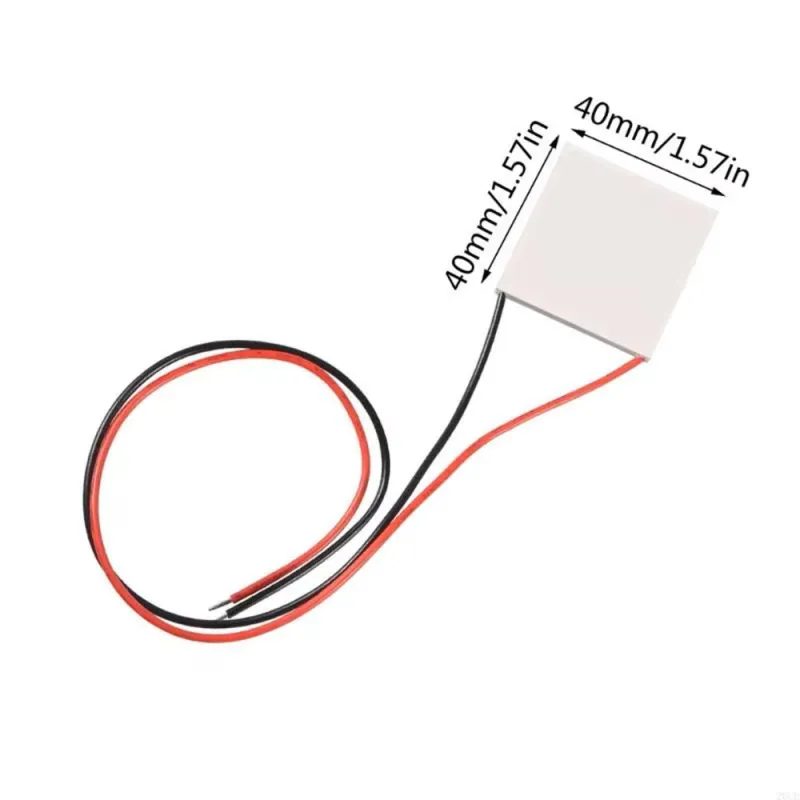

• Dimensions: 40mm x 40mm x 3.8mm
• Wire Length: Approx. 30cm
• Weight: Approx. 25g

Applications:

• High-efficiency electronic cooling systems
• CPU, laser, or LED cooling
• Mini refrigerators and portable coolers
• Temperature-controlled experiments and thermoelectric research

Note:

To prevent overheating, always install a proper heatsink and fan on the hot side of the module. Ensure correct polarity during installation to avoid damage.

Package Includes:

• 1 x TEC1-12710 Peltier Thermoelectric Cooler Module
