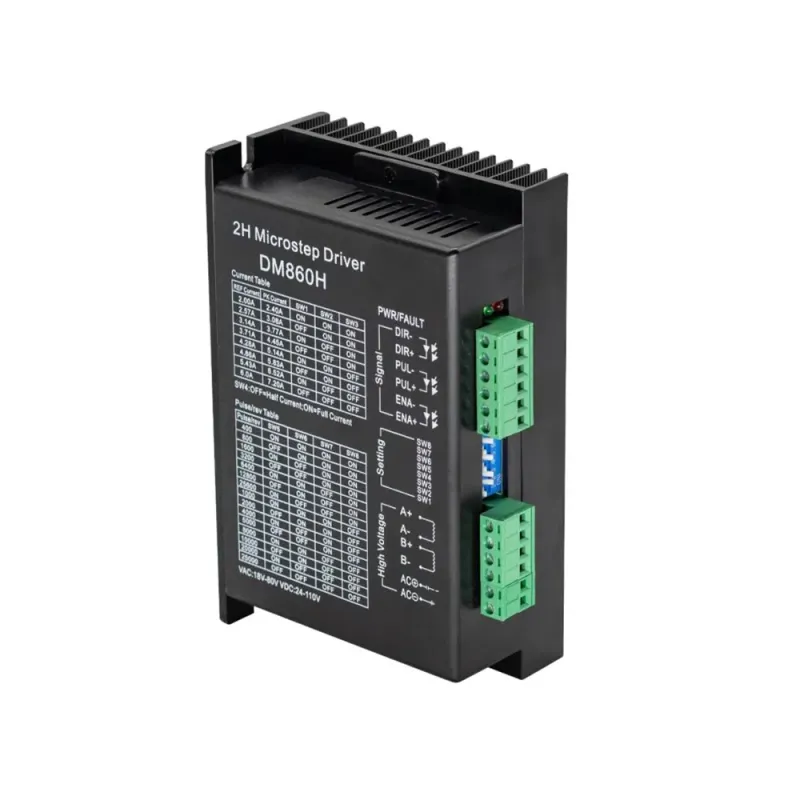

DM860H Stepper Motor Driver With Fan

The DM860H Stepper Motor Driver with Fan is a high-performance, high-quality device designed for a wide range of motion control applications. It is equipped with a cooling fan to ensure optimal performance even under demanding conditions.

Key Features

• High precision control: The DM860H offers superior precision control, making it ideal for applications that require exact movements.
• Integrated cooling fan: The built-in fan ensures the device stays cool, enhancing its durability and reliability.
• Wide voltage range: It can operate within a wide voltage range, providing flexibility in various application scenarios.
• Advanced protection: The driver comes with over-voltage, over-current, and phase-error protection features to ensure safe operation.

Technical Specifications

• Input voltage: AC18-80V or DC24-110V
• Output current: 2.4-7.2A
• Microstep: 1(1.8°), 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256
• Pulse frequency: 0-200KHz
• Dimension: 118mm x 75.5mm x 33mm

Possible Applications

The DM860H Stepper Motor Driver with Fan is suitable for a variety of applications, including but not limited to:

• CNC machines
• Robotics
• Automated assembly lines
• 3D printers
• Engraving machines
