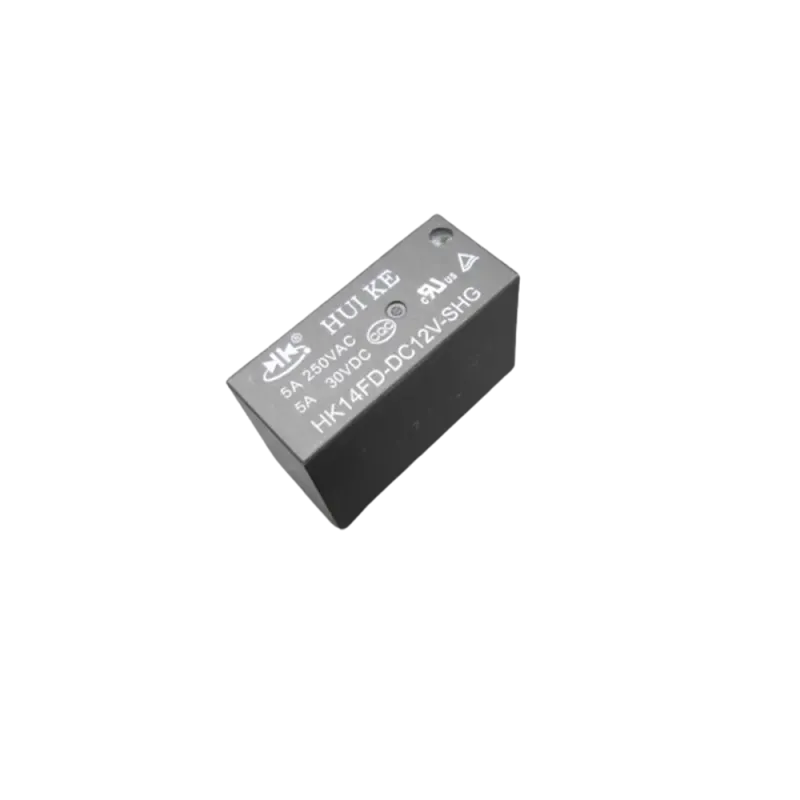

Huike HK14FD-DC12V-SHG 12V Relay – Compact SPDT Power Relay

The Huike HK14FD-DC12V-SHG is a compact and efficient 12V Single Pole Double Throw (SPDT) electromagnetic relay designed for general-purpose switching applications. It offers reliable performance in controlling circuits and is commonly used in automation systems, home appliances, and electronic projects requiring precise load management.

⚙️ Key Features

• ? Coil Voltage: 12V DC for low-power activation
• ? SPDT Contact Configuration: Single pole double throw switch design
• ⚡ High Contact Capacity: Capable of switching AC and DC loads
• ? Compact Form Factor: Ideal for space-constrained circuits
• ✅ Reliable insulation and dielectric strength

? Typical Applications

• ? Home automation and smart control systems
• ⚙️ Industrial control panels
• ?️ Microcontroller and Arduino projects
• ? Automotive and vehicle electronics
• ? Load switching and protection circuits

? Technical Specifications

• Model: HK14FD-DC12V-SHG
• Coil Voltage: 12V DC
• Contact Type: SPDT (Single Pole Double Throw)
• Contact Rating: Typically up to 10A at 250VAC / 30VDC (verify datasheet)
• Coil Resistance: ~400Ω (approx.)
• Mounting Type: Through-hole
• Dimensions: Compact size for PCB use

? Package Includes

• 1 × Huike HK14FD-DC12V-SHG 12V Relay

This 12V relay is a practical and reliable solution for controlling electrical loads in a wide variety of electronic and electromechanical systems.
