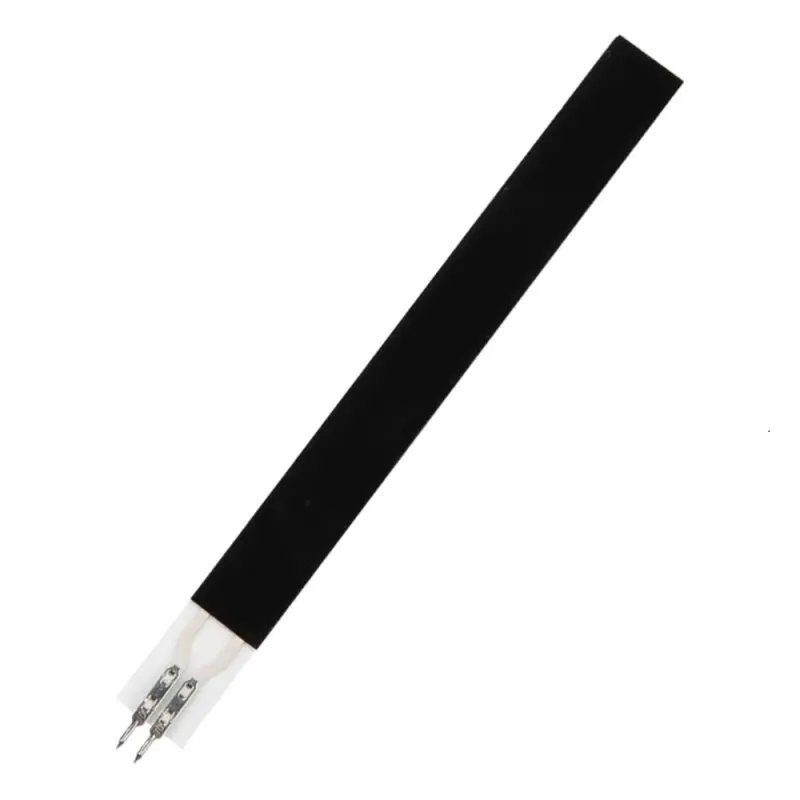

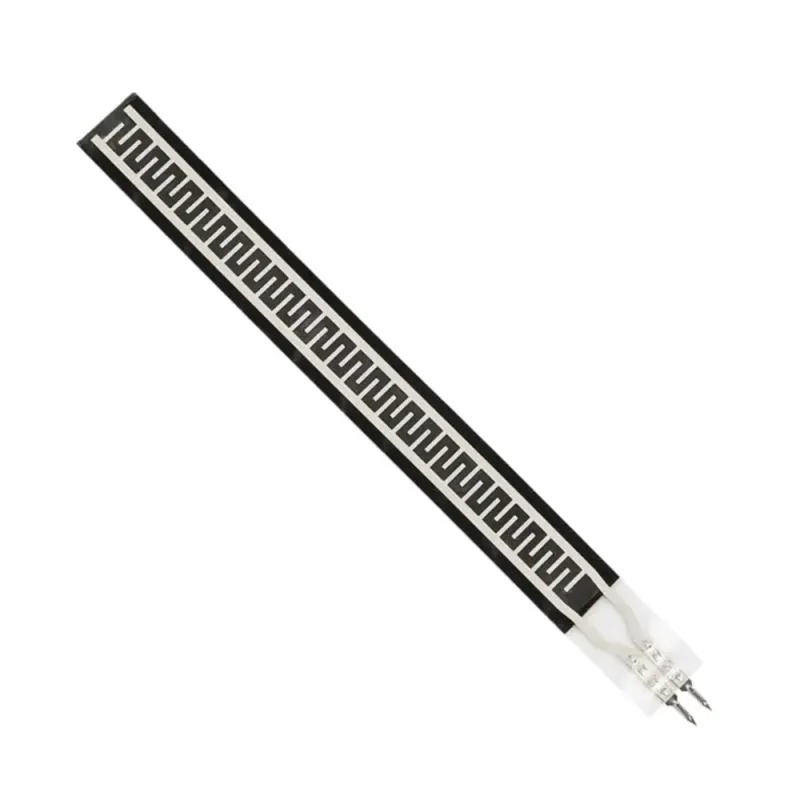

ZD10-100 Flexible Force Sensitive Resistor – Ideal for Smart Breathing Belts

The ZD10-100 Flexible Force Sensitive Resistor (FSR) is a sensor designed to detect force or pressure changes with flexibility and accuracy. With its ultra-thin and bendable structure, it's especially suited for integration into intelligent wearable systems such as smart breathing belts, posture monitors, and rehabilitation devices.

⚙️ Key Features

• ? Flexible & Thin Design: Easily conforms to curved surfaces and fabrics
• ? Force Sensitivity: Resistance decreases as applied force increases
• ? Easy to interface: Compatible with microcontrollers (Arduino, Raspberry Pi, etc.)
• ⚙️ Non-linear analog output proportional to pressure
• ? Durable construction for repeated flexing and use

? Typical Applications

• ? Smart breathing belts
• ? Posture monitoring wearables
• ? Motion and pressure detection in fitness gear
• ? Human-machine interaction systems
• ? Biomedical and rehabilitation devices

? Technical Specifications

• Model: ZD10-100
• Sensor Type: Force Sensitive Resistor (FSR)
• Sensing Area: ~10mm diameter
• Resistance Range: High (no pressure) to low (under force)
• Response Time: <1ms
• Operating Voltage: 0–5V (typical)
• Operating Temperature: -20°C to +60°C

? Package Includes

• 1 × ZD10-100 Flexible Force Sensitive Resistor

This FSR sensor is ideal for detecting subtle changes in pressure or movement, enabling advanced health monitoring and interactive control in modern wearable technology.
