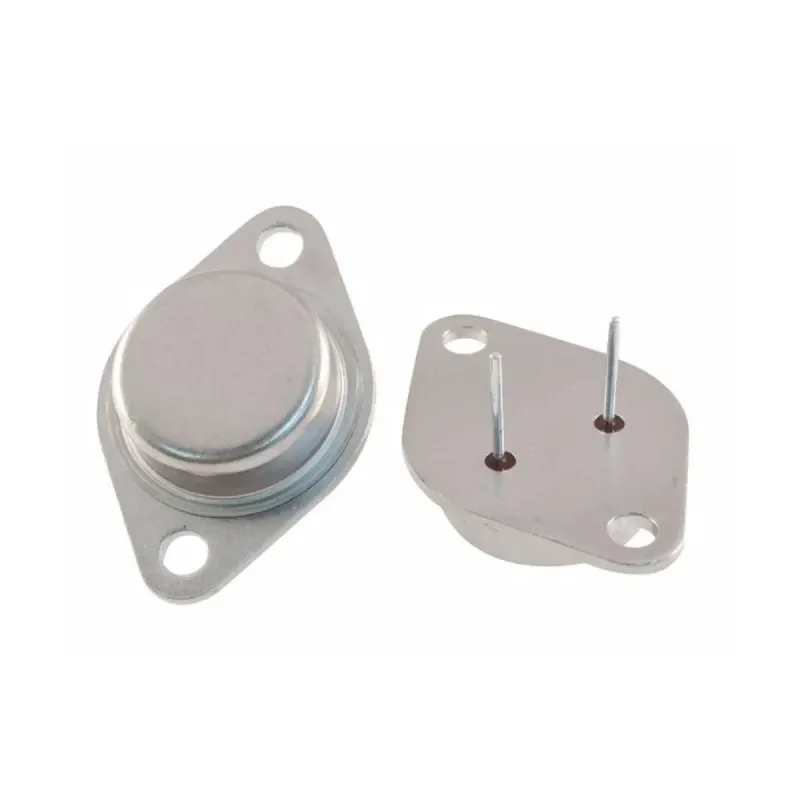

BU126 Transistor NPN 300V 3A TO-3 Original
4.97RON
Ex Tax: 4.97RON
- Stock: In Stock
- Model: BU126
Your orders placed until 16:30 on weekdays are shipped on the same day.
BU126 Transistor NPN 300V 3A TO-3 Original
| Case | TO3 |
| Type | Transistor Silicon NPN |
| Manufacturer | RCA - Harris |
| Vbr CEO | 300 |
| Max. PD (W) | 30 |
| Max. hFE | 60 |
| Min hFE | 15 |
| Ic Max. (A) | 3.0 |
| @Ic (test) (A) | 1.0 |
| Icbo Max. @Vcb Max. (A) | 500u |
| Polarity | NPN |
| Tr Max. (s) | 1.2u |
| R(sat) (Û) | 4.0 |
| Derate Above 25°C | 400m |
| Trans. Freq (Hz) Min. | 8.0M |
| Oper. Temp (°C) Max. | 125 |
| @VCE (V) | 5.0 |
| Pinout Equivalence Number | 3-14 |
| Surface Mounted Yes/No | NO |
| Maximum Collector Power Dissipation (Pc) | 30 W |
| Maximum Collector-Base Voltage |Vcb| | 750 V |
| Maximum Collector-Emitter Voltage |Vce| | 300 V |
| Maximum Collector Current |Ic max| | 3 A |
| Max. Operating Junction Temperature (Tj) | 125 °C |
| Transition Frequency (ft): | 4 MHz |
| Forward Current Transfer Ratio (hFE), MIN | 15 |
