14mm 7-Segment 1 Digit Display Common Cathode 5611AB - BLUE

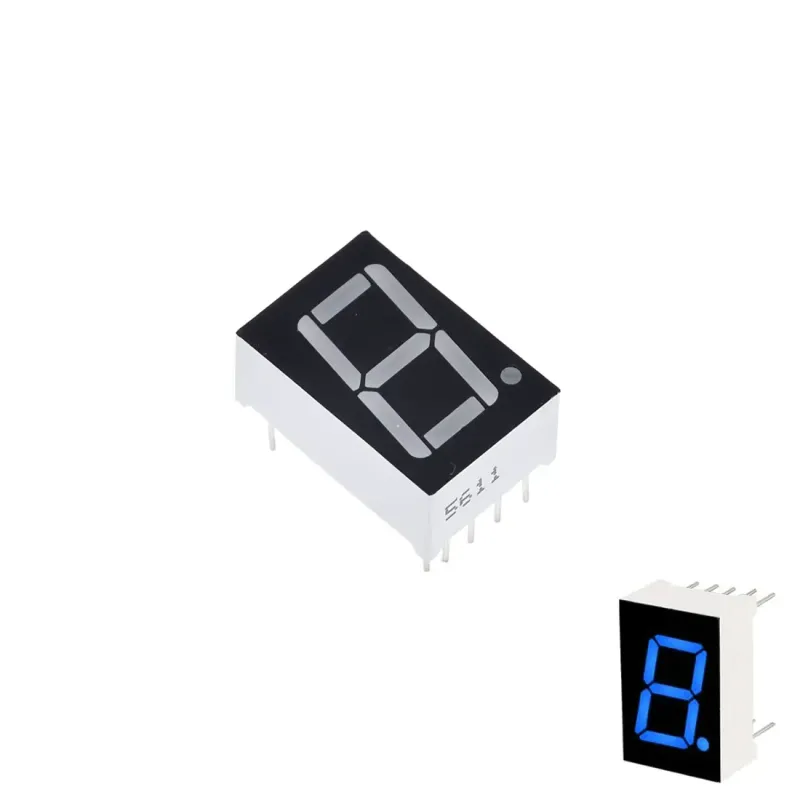

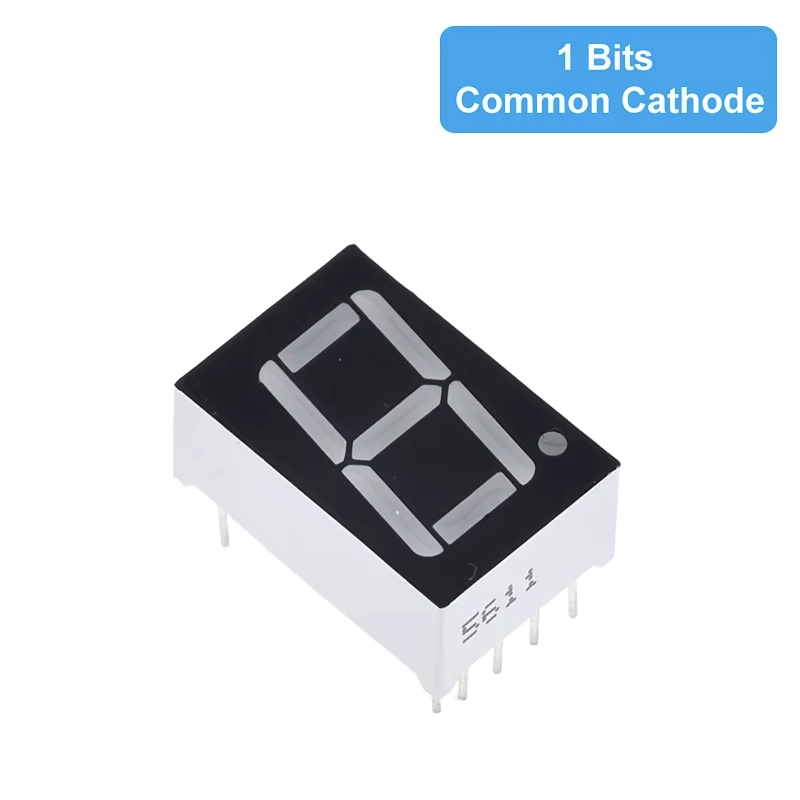

The 5611AB is a single-digit, 7-segment LED display with a digit height of 0.56 inch (14.2 mm). This model features a common cathode configuration and emits a bright blue light. It is ideal for digital clocks, voltmeters, counters, and other numeric display devices.

? Technical Specifications

• Model: 5611AB
• Digit Count: 1
• Display Type: 7-segment
• Digit Height: 14.2 mm (0.56 inch)
• Color: Ultra bright blue
• Connection Type: Common Cathode
• Appearance: Black background with white segments

⚙️ Electrical Characteristics (25°C)

• Peak Wavelength (λp): Approx. 470 nm
• Forward Voltage (Vf): 3.2 V (typical at 10 mA)
• Reverse Current (IR): ≤ 50 μA (at 5V reverse)
• Continuous Forward Current: 30 mA per segment
• Peak Forward Current: 200 mA (1/10 duty cycle, 10 kHz)
• Power Dissipation: 100 mW per segment
• Operating Temp. Range: -20°C to +75°C
• Storage Temp. Range: -20°C to +85°C
• Soldering Temp: 230°C for 5 sec (1.6 mm from body)

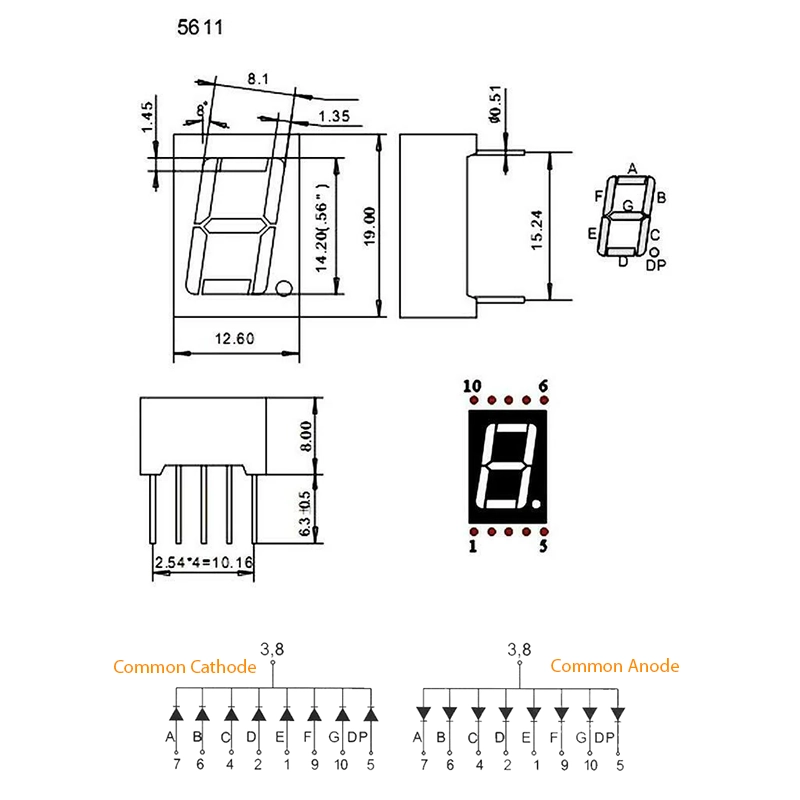

? Physical Dimensions

• Body Size: Approx. 19 mm (W) × 19 mm (H) × 8 mm (D)
• Pin Pitch: 2.54 mm
• Total Pins: 10
