UVM-30A UV Ultraviolet Detection Sensor Module
55.89RON
Ex Tax: 55.89RON
- Stock: In Stock
- Model: A1249.UVM-30A
Your orders placed until 16:30 on weekdays are shipped on the same day.

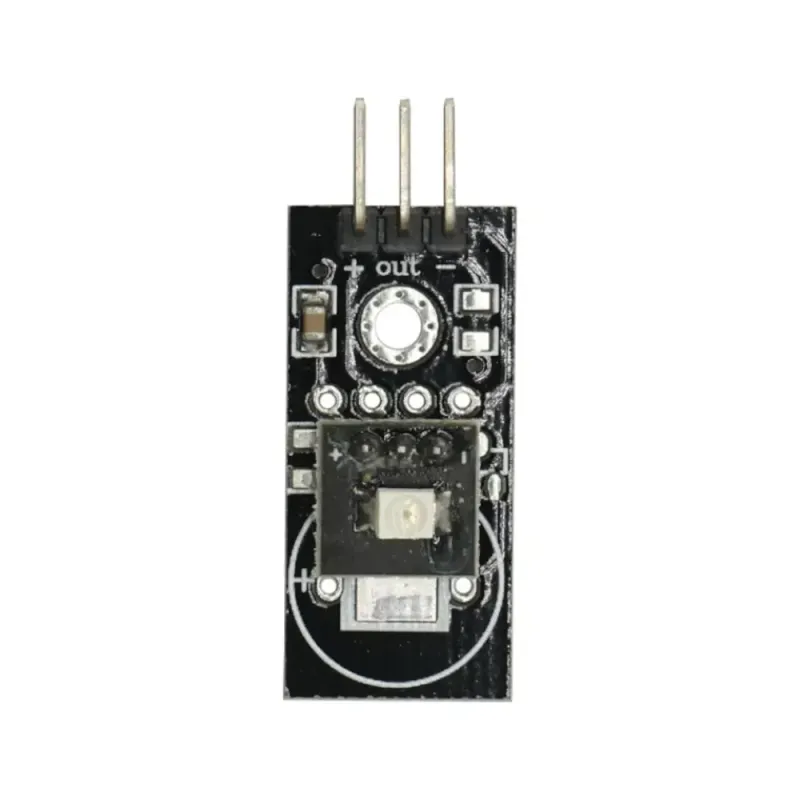

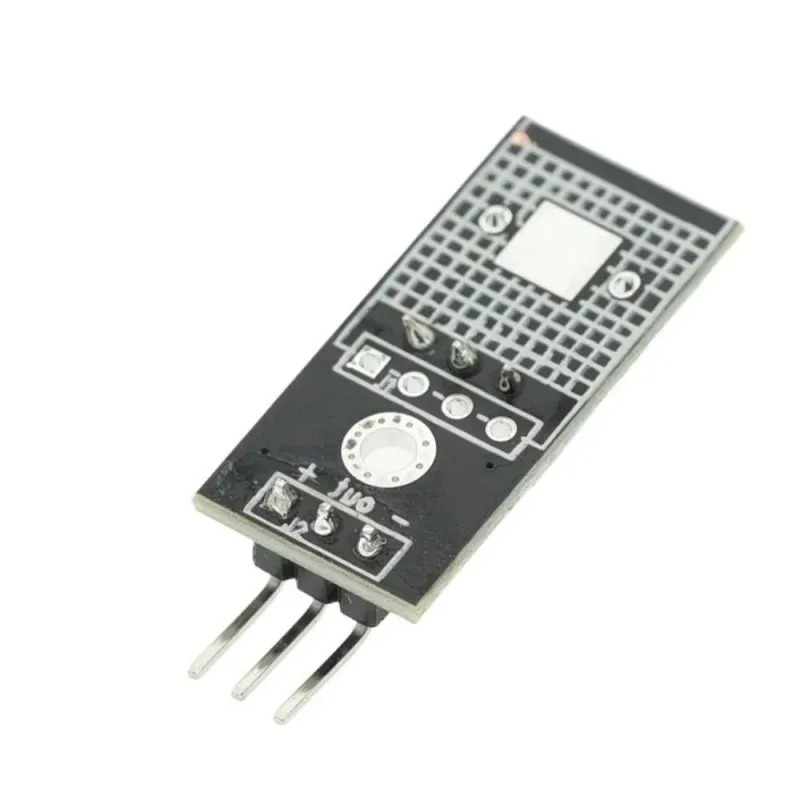

☀️ UVM-30A UV Ultraviolet Detection Sensor Module
The UVM-30A UV Sensor Module is a compact and reliable solution for detecting ultraviolet rays in the 200nm to 370nm wavelength range. It's ideal for UV index monitoring, environmental applications, and wearable UV detection devices.
? Technical Specifications
- Operating Voltage: DC 3–5V
- Output Voltage: DC 0–1V (analog output)
- Test Accuracy: ±1 UV INDEX
- Operating Current: 0.06mA (typical), 0.1mA (max)
- UV Detection Wavelength Range: 200nm – 370nm
- Response Wavelength: 200nm – 370nm
- Operating Temperature: -20℃ to +85℃
- PCB Size: 28mm x 12mm x 10mm
⚙️ Features
- Compact design suitable for portable and embedded systems
- Analog output voltage proportional to UV intensity
- Low power consumption, ideal for solar and battery-powered projects
- Great for outdoor weather stations and personal UV exposure meters
? Package Includes
- 1 x UVM-30A UV Ultraviolet Ray Detection Sensor Module
