SG3525 Integrated Circuit
8.46RON
Ex Tax: 8.46RON
- Stock: In Stock
- Model: A1642.SG3525
Your orders placed until 16:30 on weekdays are shipped on the same day.

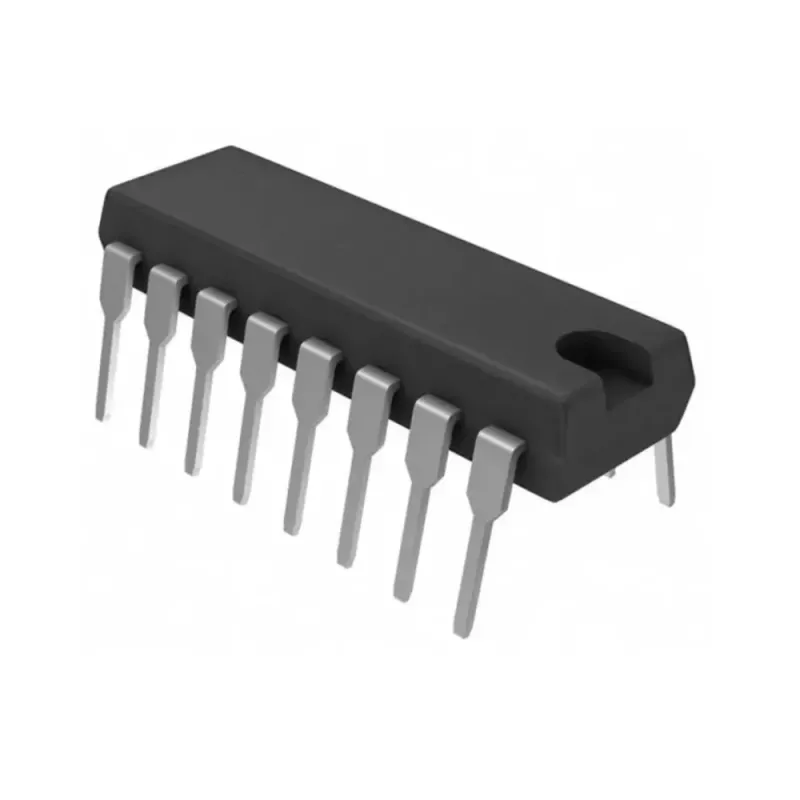

SG3525 Integrated Circuit – DIP Package
The SG3525 is a pulse width modulation (PWM) controller IC designed for power supply and DC-DC converter applications. It provides precise control of the output voltage and current with adjustable duty cycle and frequency, making it ideal for switch-mode power supplies and motor control.
Key Features
- Adjustable PWM frequency up to 400 kHz
- Dead-time control for preventing shoot-through in power transistors
- Under-voltage lockout to ensure stable operation
- Soft-start feature to limit inrush current
- Output control for driving power MOSFETs or BJTs
- Dual output PWM signals for push-pull or half-bridge applications
- Available in DIP package for easy prototyping and replacement
Applications
- Switch mode power supplies (SMPS)
- DC-DC converters
- Motor speed controllers
- Battery chargers
- Inverters
Package Contents
- 1 × SG3525 PWM Controller IC (DIP package)
The SG3525 is widely used in power electronics projects where precise and efficient PWM control is needed for power conversion and regulation.
