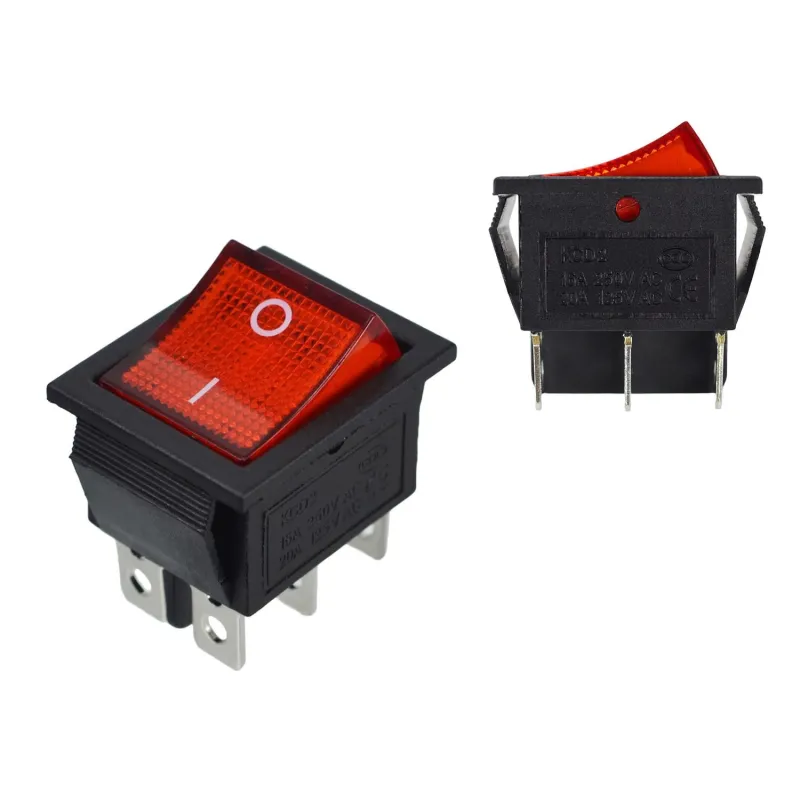

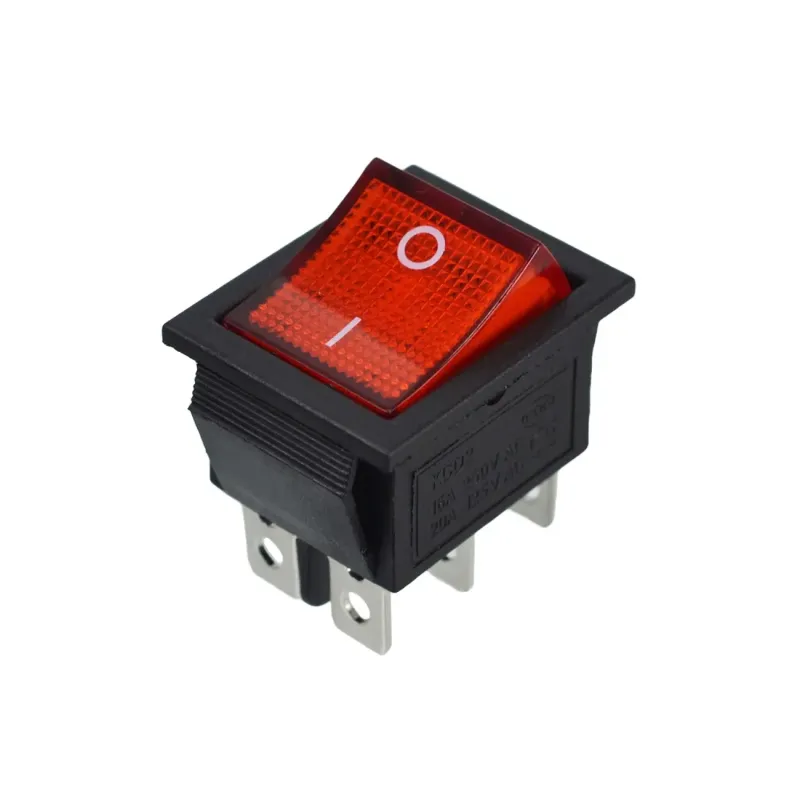

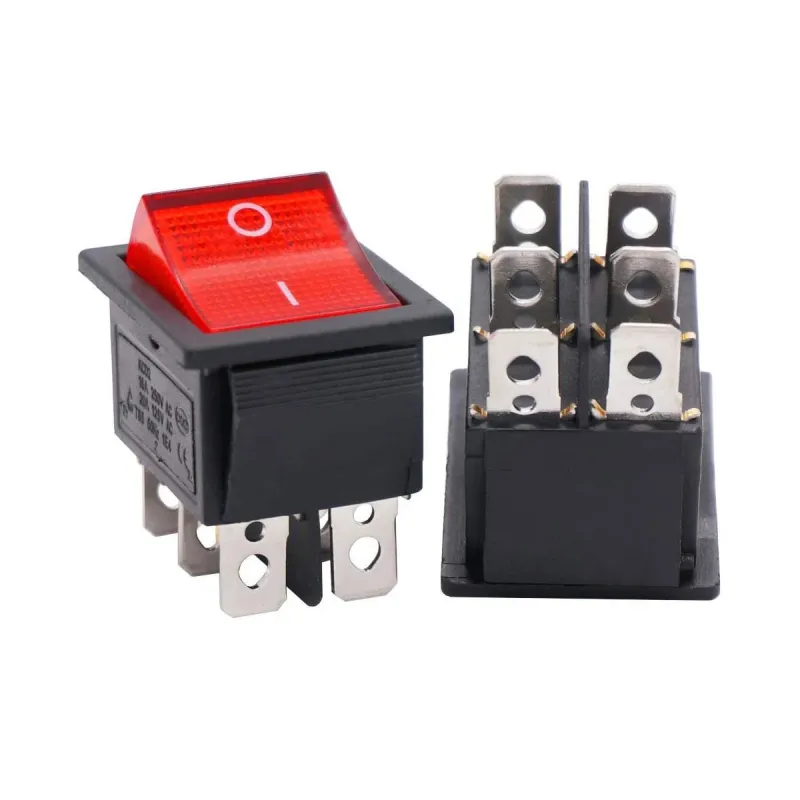

KCD2-202N ON-ON Rocker Switch DPDT 6 Pin 250V 16A - Red
6.44RON
Ex Tax: 6.44RON
- Stock: In Stock
- Model: C015.KCD2-202N-RED
KCD2-202N ON-ON Rocker Switch DPDT 6 Pin 250V 16A - Red
Daier KCD2-202N on on rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
High quality2 Way Rocker Switch from leading manufacturer Daier
If you want to know more information , please contact us, I will check and reply to you.
KCD2-202N 12V 2 Way Rocker Switch datasheet below
| Housing: | Nylon 66 | Button: | Nylon 66 |
| Terminal: | Brass with sliver plated | Button color: | Standard red and green,yellow and blue is avaliable |
| Rating: | 20A 125VAC/15A 250VAC | Housing color: | Standard black |
| Contact & Operation: | DPDT,ON-ON | Lamp Voltage: | 220V/120V/12V/24V |
| Contact Resistance: | 35mΩ max | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
| Certification: | CE, CQC, TUV, SGS | OEM or ODM: | Available |
