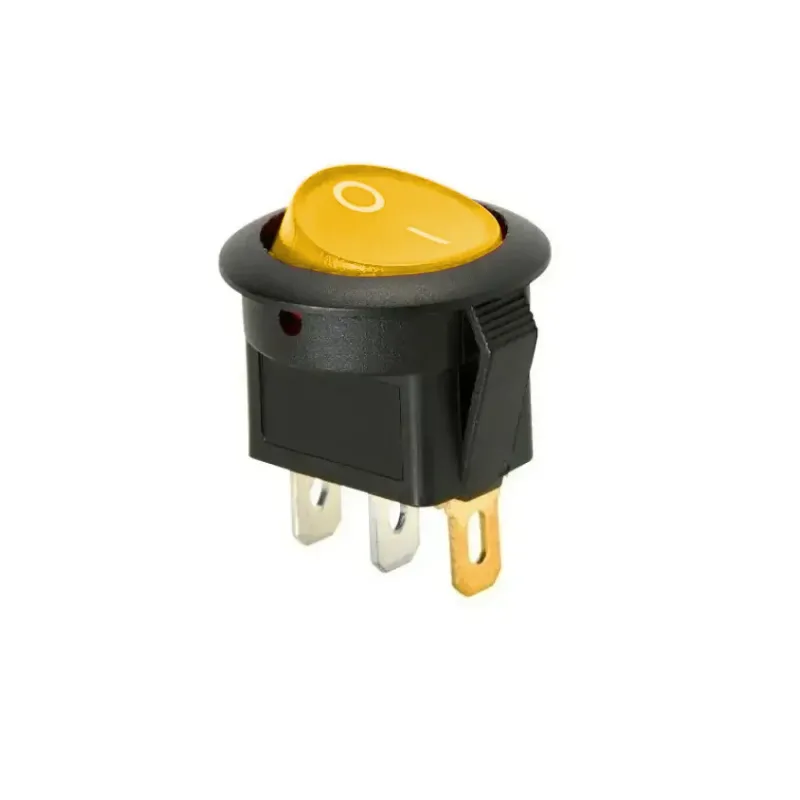

KCD1-5-101N illuminated Round Rocker Switch 250V 6A SPST ON-OFF   - Yellow

Compact Design, Powerful Performance
This miniature 220V round rocker switch offers a high switching current in a space-saving design. Its compact size makes it ideal for applications where space is limited, while still providing reliable performance for various devices.

Durable and Long-Lasting
Built with a rugged nylon 66 housing, this snap-in rocker switch boasts a long mechanical life. It can withstand frequent use and heavy loads, ensuring reliable operation over an extended period, exceeding 100,000 mechanical cycles.

High-Quality Construction
This rocker switch is crafted with high-quality materials to ensure long-lasting performance even under demanding conditions. The brass terminals with silver plating provide excellent conductivity and resistance to corrosion, contributing to its reliable operation and 10,000+ electrical cycles.

Versatile Applications
This rocker switch is suitable for a wide range of applications, including water dispensers, extension sockets, automotive accessories, and more. Its compact size, reliable operation, and range of available colors make it a versatile solution for various projects

Enhanced Aesthetics and Functionality
The combination of a simple ON-OFF function, compact design, and vibrant color options makes this rocker switch both practical and visually appealing. The optional LED indicator adds a modern touch and enhances visibility in low-light conditions, providing a clear indication of the switch’s status.

Features/Specs:

• Manufacturer Part No: KCD1-5-101N-Y
• Material: Plastic and Metal
• Switching Mode: ON-OFF
• Structure: SPST
• Current/Voltage Rating: 10A 125VAC/6A 250VAC
• Operating Temperature: -25C~+85C
• Contact Resistance: < =30mOhm
• Insulation Resistance: > =100mOhm (500VDC)
• Electrical Life: > =10,000 Cycles
• Dielectric Strength: 1500VAC 1 minute
• Mechanical Life: > =100,000 Cycles
• Number of Pins: 3
• Illumination Type: Illuminated
• Actuator Shape: Round
• Indication Color: Yellow
• Hole Diameter: 20 mm
• Height: 17 mm
• Weight: 7gm

Application:
Home Appliances
Electrical etc…
