KCD3-103 Rocker Switch SPDT ON-OFF- ON 250V 15A 3 Ways - Black
3.68RON
Ex Tax: 3.68RON
- Stock: In Stock
- Model: T103.KCD3-103
KCD3-103 Rocker Switch SPDT ON-OFF- ON 250V 15A 3 Ways - Black - Black

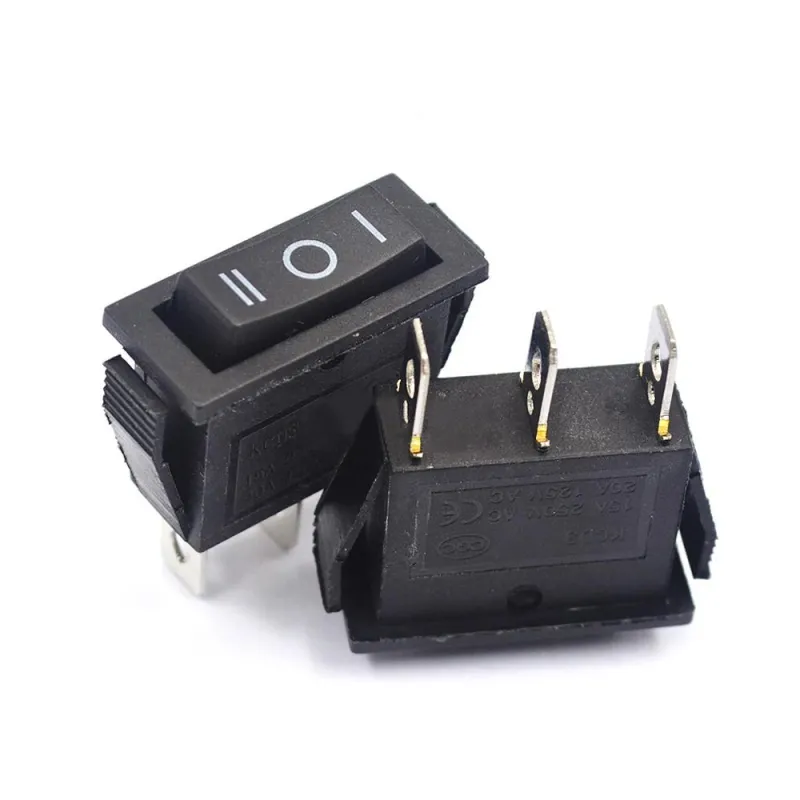

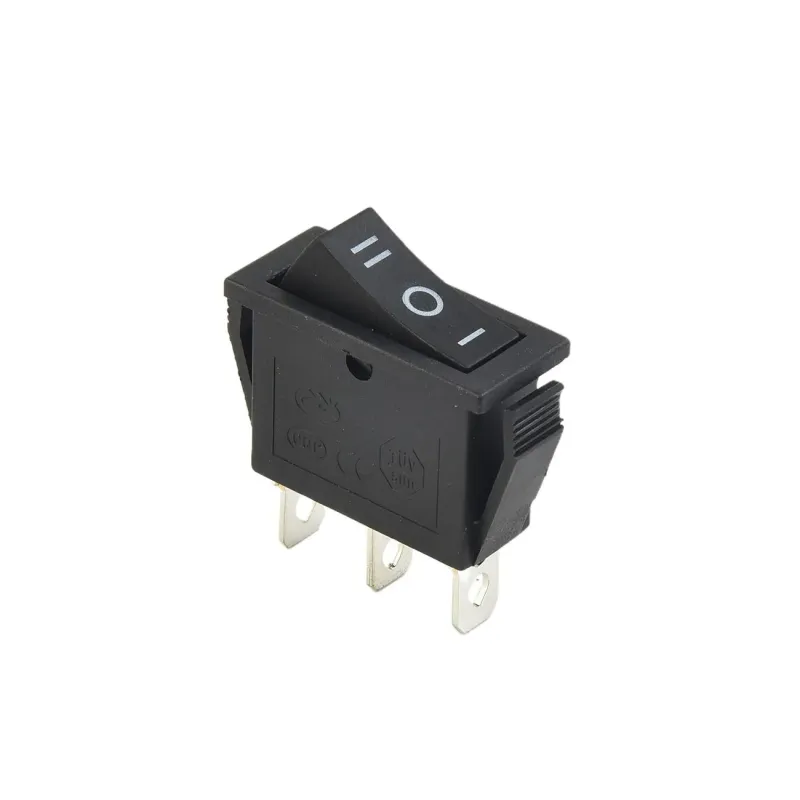

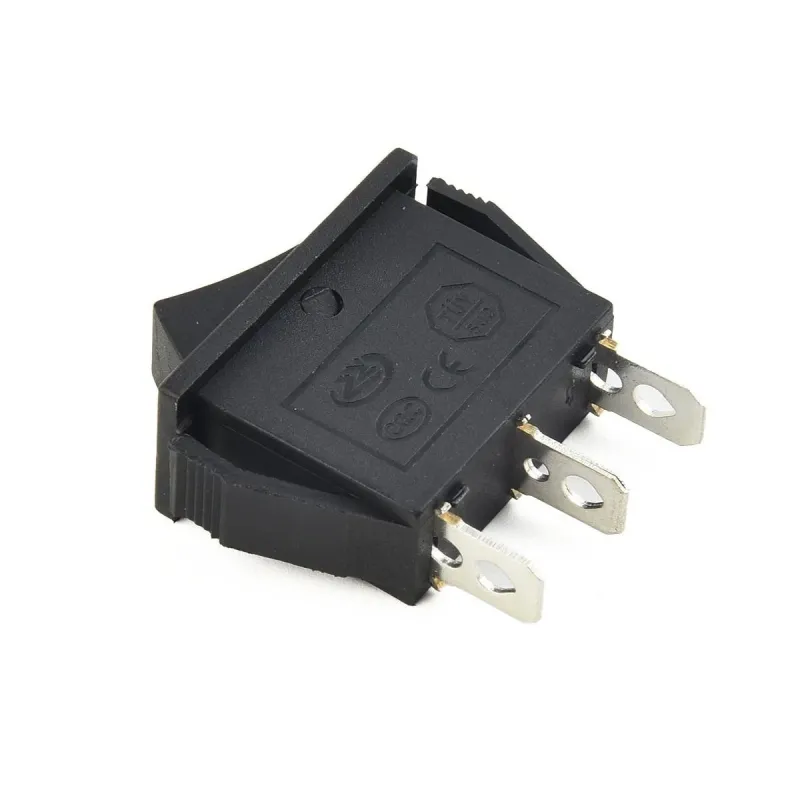

The KCD3 3-pin switch is in high demand in the field of radio electronics. It is commonly installed in industrial equipment, control panels, and other devices that are used in low-light environments. The presence of illumination in some variants allows users to quickly and accurately locate the switch, which is particularly crucial in emergency situations in industrial settings. The three silver-colored pins on this model enable efficient circuit switching.
? Technical Specifications of the Black KCD3 ON-OFF-ON Switch (3 Pins) (15A 250VAC):
- Switching configuration: ON-OFF-ON, SPDT
- Number of pins / switching groups: 3 / 1 group (3P)
- Color (rocker/body): Black / Black
- Rocker shape: Rectangular, Type C (concave)
- Illumination: None

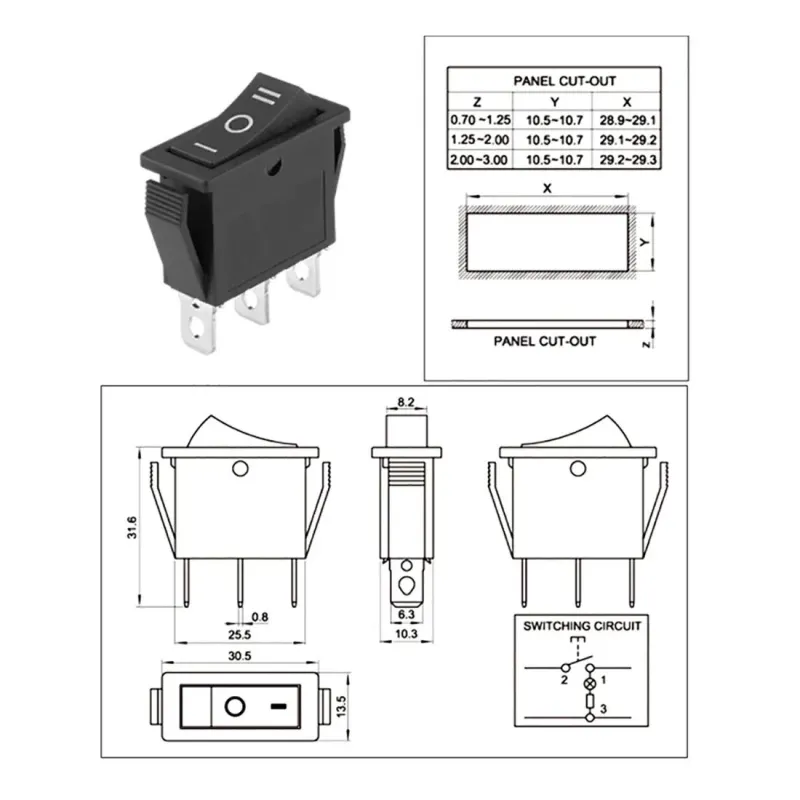

- Mounting hole size: 11.5 × 28.5 mm
- Switching voltage: 250V (125V) AC
- Maximum current: 15A (up to 20A)
- Contact resistance (max): ≤ 35 mΩ
- Insulation resistance (min): ≥ 100 MΩ (at 500V, 1 min.)
- Dielectric strength: 1500V (50 Hz, 1 min.)
- Electrical durability: ≥ 10,000 switching cycles
- Operating temperature range: -25°C to +85°C
- Height: 37 mm
- Width: 13.6 mm
- Depth (with front panel): 30.8 mm
