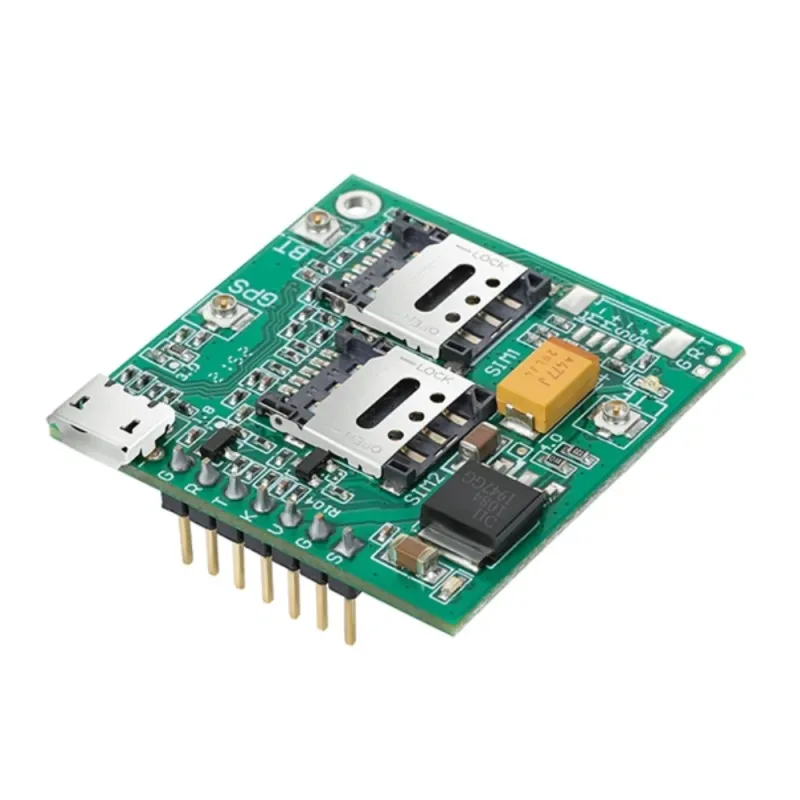

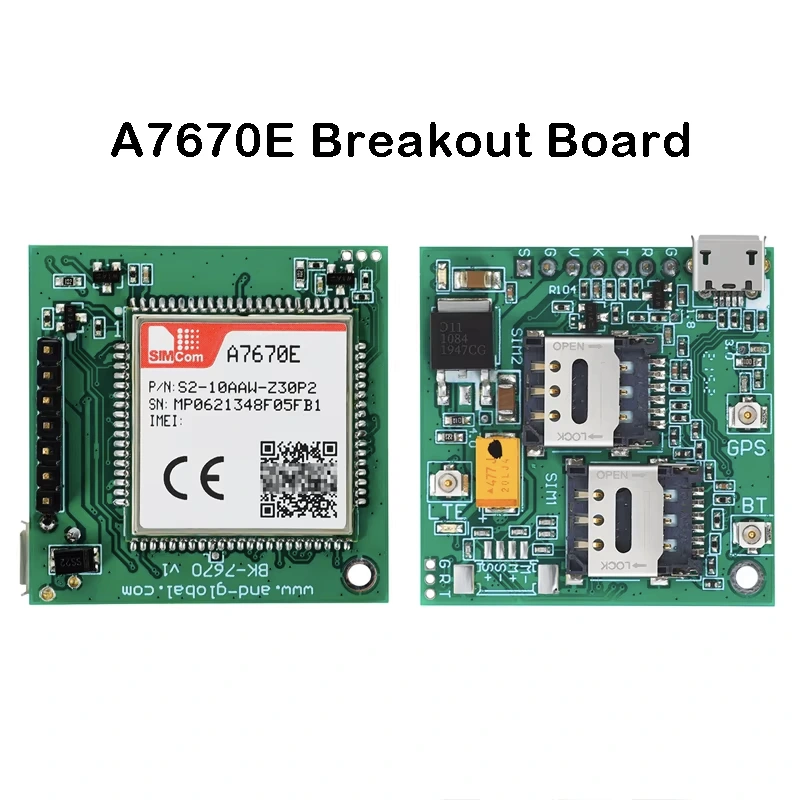

Simcom A7670E Dual SIM 4G LTE Cat 1 and GPS Module with GSM and GPS Antennas

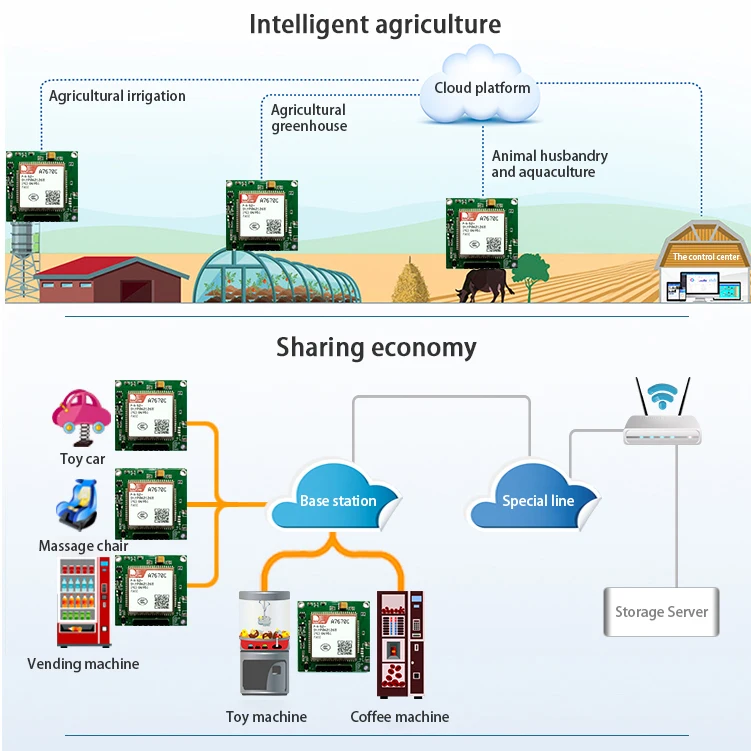

The Simcom A7670E (Europe version) is a powerful and versatile communications module designed to meet the demands of modern IoT applications and wireless communication systems. This module offers an impressive range of technical specifications and features that make it ideal for a wide range of applications, ranging from telemetry and tracking to industrial automation and smart cities. Here are some of its notable features:
LTE Cat 1 connectivity: The Simcom A7670 module supports LTE Cat 1 connectivity, making it possible to send and receive data at high speeds over mobile networks. With a maximum download rate of 10 Mbps and a maximum upload rate of 5 Mbps, you are assured of reliable and efficient data transmission.
Multi-constellation GNSS support: This module is equipped with support for multiple satellite navigation systems, including GPS, GLONASS and BDS. This ensures accurate and reliable positioning, even in challenging environments.
Wide frequency band support: With frequency band support for GSM (900/1800 MHz) and LTE-FDD (B1/B3/B5/B7/B8/B20), you can deploy this module throughout Europe, making it a versatile choice for international applications.
AT commands and UART/USB control: The module can be easily configured and controlled using AT commands via UART (serial communication) or USB 2.0 (micro USB connector), simplifying integration into your project.

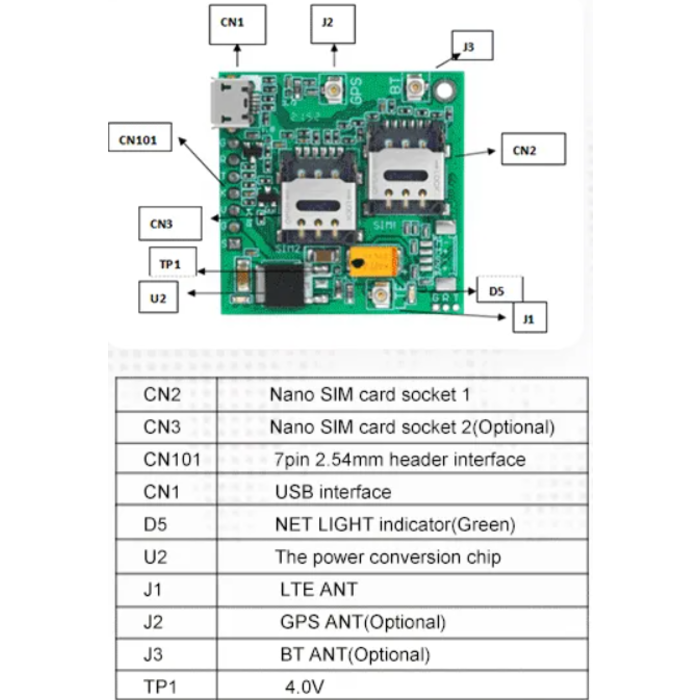

IPEX connectors for antennas: This module is equipped with IPEX connectors for GPS, Bluetooth and LTE antennas, giving you the flexibility to connect external antennas for optimal signal strength.
Wide supply voltage options: The module has a VCC pin that can be powered with a voltage between 5V and 10V, providing flexibility when integrating into different power systems.
Data Rate for GPRS/EDGE and LTE: Enjoy data rates up to 236.8 Kbps (DL/UL) for GPRS/EDGE and 10 Mbps (DL) / 5 Mbps (UL) for LTE respectively, giving you fast data access regardless of your application.
The Simcom A7670 module offers reliability, versatility and performance in a compact module. Whether you are building an IoT solution, developing a tracking application or implementing another wireless communication system, this module will meet all your data connectivity and satellite navigation requirements.
Connectivity:
LTE Cat 1 connectivity with up to 10 Mbps (DL) and 5 Mbps (UL)
Supported communications: LTE-TDD, LTE-FDD, GSM, GPRS, EDGE
Frequency bands: GSM 900/1800 MHz, LTE-FDD B1/B3/B5/B7/B8/B20
Satellite navigation:
Supported GNSS systems: GPS, GLONASS, BDS (multi-constellation support)
Control interface:
Configuration via AT commands
Communication via UART (serial communication) and USB 2.0 (micro USB connector)
Power supply:
Supply voltage: 5V to 10V via VCC pin
Data rates:
GPRS/EDGE data rate: 236.8 Kbps (DL/UL)
LTE Data Rate: 10 Mbps (DL) / 5 Mbps (UL)
Antenna Connectors:
IPEX connectors available for GPS, Bluetooth and LTE antennas
