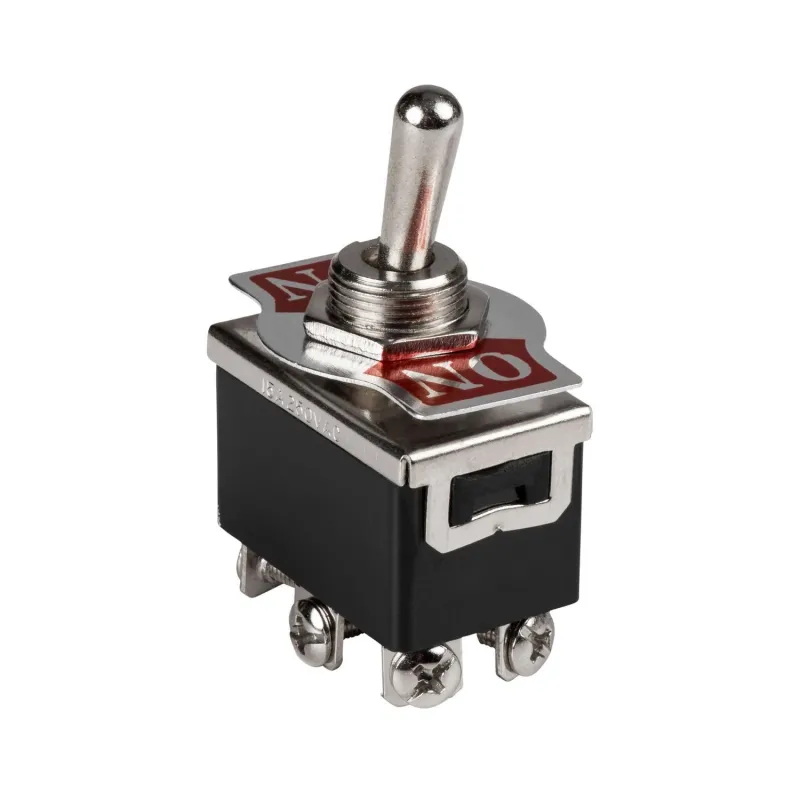

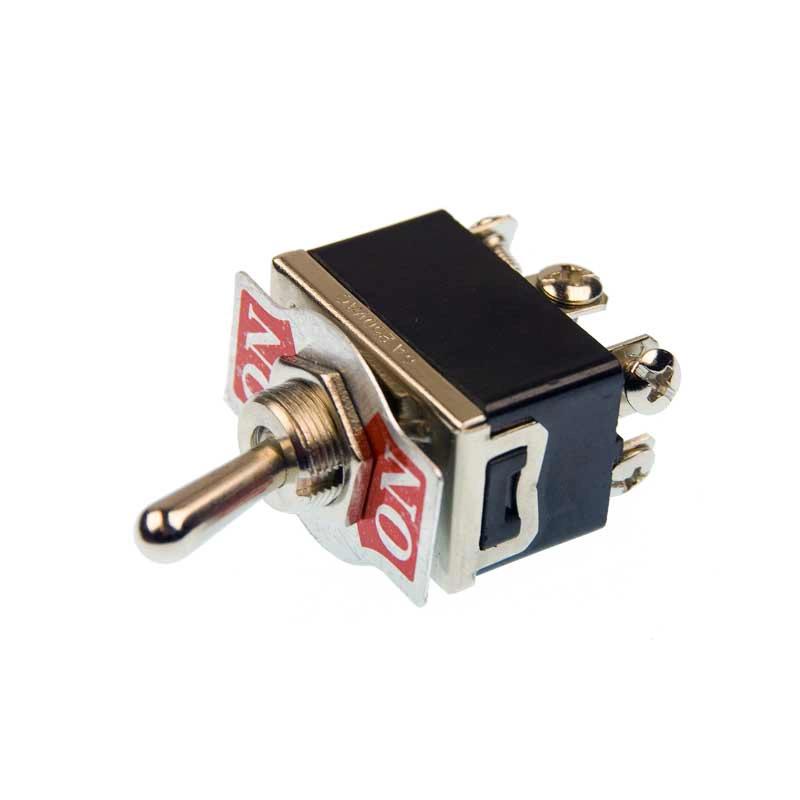

KN3C-202 Large Toggle Switch DPDT 250V 15A ON-ON

 The KN3C-202 is a robust, medium/large-sized toggle switch with a DPDT configuration, allowing you to control two separate circuits simultaneously. With its ON-ON function, the switch has two stable positions—flipping one way connects to one circuit, and flipping the other way connects to another.This feature makes it ideal for applications like direction switching, dual motor control, or input/output toggling.

⚙️ Technical Specifications

• Voltage Rating: Up to 250V AC
• Current Rating: 15A (safe operation at 250V AC)
• Poles: Double Pole (2P)
• Positions: 2-position (ON-ON)
• Connection Type: Screw terminals – no soldering required
• Pins: 6 pins
• Mounting Type: Panel mount (secured with a nut)
• Body Material: Metal (usually nickel-plated)
• Toggle Handle: Long metal lever – easy to switch

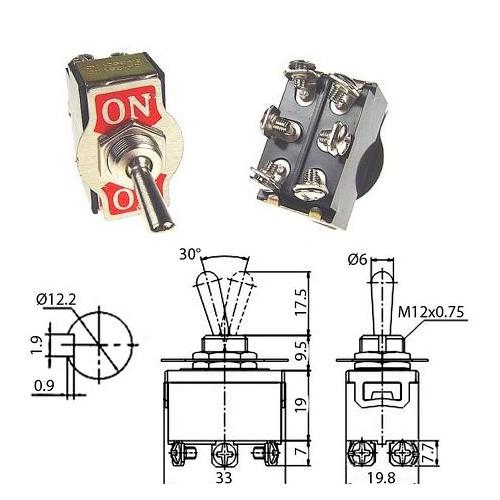

• Size: Medium to large (approx. 28mm x 13mm body)

💡 Applications

• Electrical control panels
• RC (remote control) systems
• Automation systems
• DIY electronics projects
• Signal routing in audio systems / amplifiers
• Test benches and experimental setups

✅ Advantages

• Durable and long-lasting construction
• Can independently control two circuits
• Easy to mount and remove
• Clear and tactile switching positions
• Reliable contact mechanism
