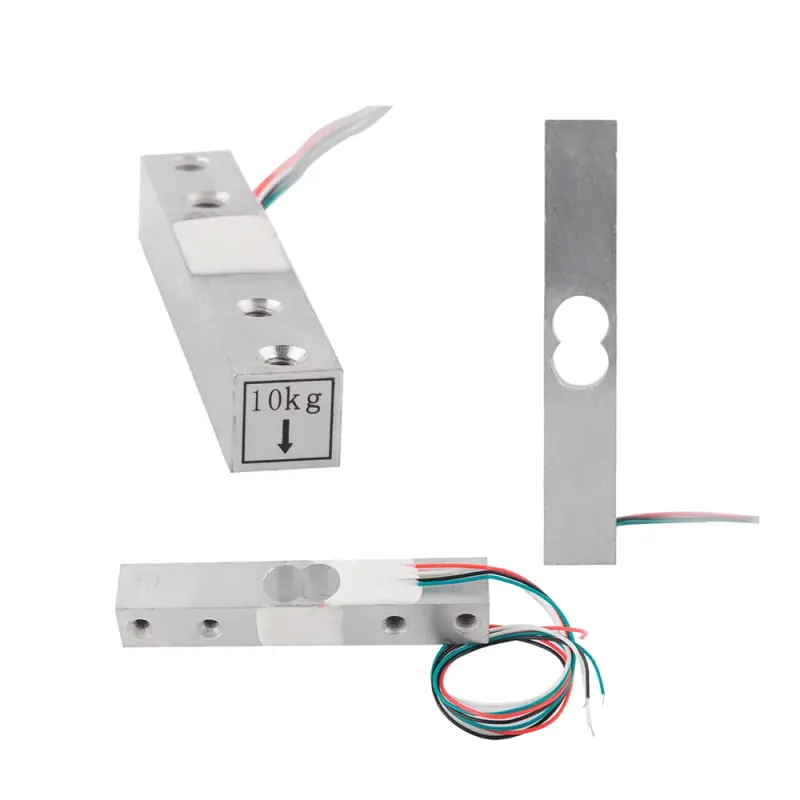

10kg Load Cell Sensor

•
• Application: Kitchen Scale
• Measurement Range: 10kg
• Output Sensitivity: 1.0 ± 0.15 mV/V
• Non-linearity: 0.05%
• Repeatability: 0.03%
• Hysteresis: 0.03%
• Creep: 0.1%
• Temperature Sensitivity Drift: 0.003% RO/°C
• Temperature Zero Drift: 0.02% RO/°C
• Zero Balance: ±0.1% RO
• Input Impedance: 1066 ± 20 Ω
• Output Impedance: 1000 ± 20 Ω
• Insulation Resistance: 2000 MΩ (at 50V)
• Recommended Excitation Voltage: 5V
• Temperature Compensation Range: -10 to 50 °C
• Operating Temperature Range: -20 to 65 °C
• Safety Overload Capacity: 120% RO
• Ultimate Overload Range: 150% RO
• Sensor Material: Aluminum alloy
• Connection Cable: Ø0.8 x 180 mm
• Dimensions: 12.7 mm x 12.7 mm x 80 mm

Wiring:

• Red: Input (+)
• Black: Output (-)
• Green: Signal Positive (S+)
• White: Signal Negative (S-)
