Adjustable Temperature Electric Soldering Iron 220V 60W

60W 220V EU Plug Electric Soldering Iron
200-450°C Adjustable Temperature Internal Heating Welding Tool for Electronics Work

This compact designed soldering pen is ideal for professional use. Soldering can be performed and adjusted from the control knob from 200 - 450°C. Interchangeable iron plated tips are available to make the soldering station excellent for electronic and electric use.

Features:

• Professional soldering tool is great for lead-free soldering semiconductors.
• High quality long lasting ceramic type heater.

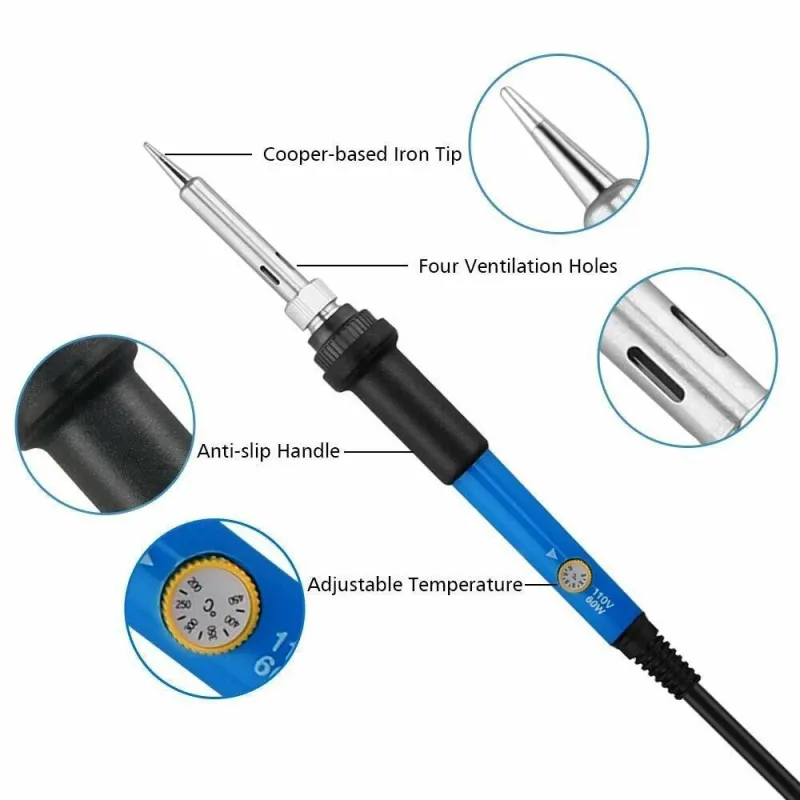

• Adjustable temperature controlled soldering irons: 200 - 450°C (there is a knob wheel on the electronic soldering pen for temperature adjustment).
• Ideal for hobbies, kits, radios, and electronics work.
• Iron plated tip and stainless steel construction offer longer life.

Operating Instructions:

1. Clean the parts to be joined.
2. Clean soldering iron tip and tin all faces of tip with a coating of solder.
3. Heat parts (not solder) to be joined.
4. Apply flux-core solder to heated parts, not soldering tip, and heat it till solder melts and flows freely.

Specification:

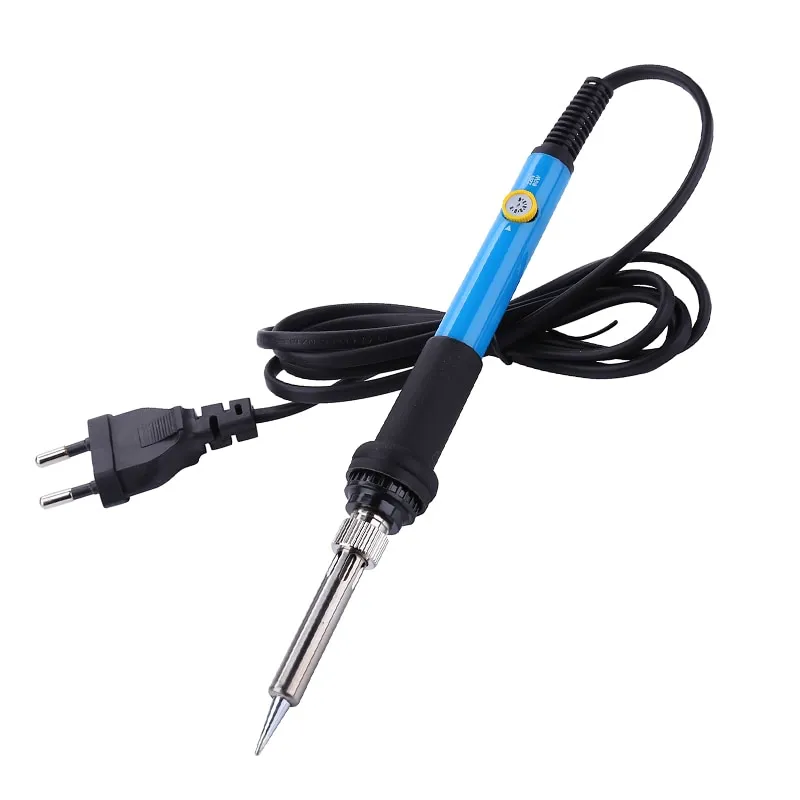

• Plug: EU Plug
• Soldering iron length: 18.5 cm
• Cable length: 143 cm
• Working voltage: 220V
• Power: 60W
• Type: Soldering Pen
• Heating way: Internal heating
• Package weight: 0.15 kg
• Package size (L x W x H): 27.50 x 6.00 x 3.30 cm / 10.81 x 2.36 x 1.30 inches

Caution:

• When the soldering iron is plugged in for the first time, smoke may come from the tip end. This is normal and stops after a short while.
• Use soldering stand and other aids to avoid burning fingers.
• Do not pull the soldering iron tip outward and use it, as it will shorten the heating element's life.
• Do not file the long-life tip face or apply too much solder unnecessarily.

Package List:

• 1 x Electric Soldering Iron

Applications:

A necessary tool for ElecDIY or repair, easy to adjust and control the temperature.

How to Solder:

1. Clean the parts to be joined.
2. Clean soldering iron tip and "tin" all faces of tip with a coating of solder.
3. Heat parts, not solder, to be joined.
4. Apply solder to heated parts, not the soldering tip, and heat it till solder melts and flows freely.
