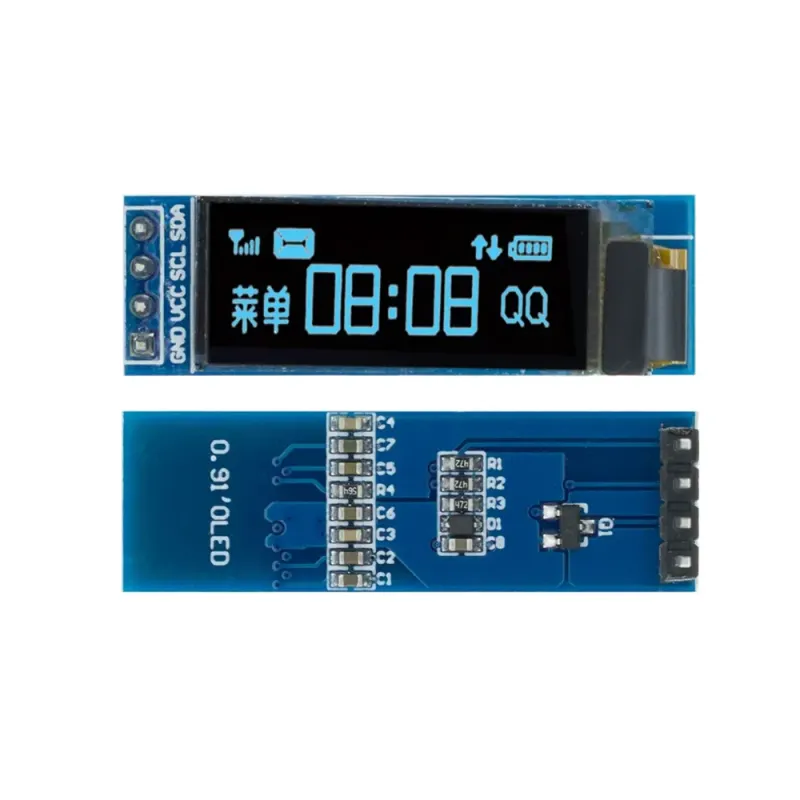

0.91" OLED Display Module – Blue Screen, 128x32 Pixels
18.40RON
Ex Tax: 18.40RON
- Stock: In Stock
- Model: T693.OLED091B
Your orders placed until 16:30 on weekdays are shipped on the same day.
Tags:
OLED display
, 0
, Blue screen
, 128x32 pixels
, Display module
, OLED technology
, High resolution
, Compact size
? 0.91" OLED Display Module – Blue Screen, 128x32 Pixels
This compact 0.91 inch OLED module offers a clear and sharp 128x32 resolution blue display, making it ideal for small-scale electronics projects. Powered by the SSD1306 driver, the module is easy to interface via I2C communication.
? Technical Specifications
- Display Type: OLED
- Driver IC: SSD1306
- Resolution: 128x32 pixels
- Display Color: Blue
- Screen Size: 0.91 inch
- Display Shape: Rectangular
⚙️ Electrical Characteristics
- Supply Voltage: 3.3V – 5V DC
- IO Input Voltage: 3.3V
- IO Output Voltage: 3.3V
- Pull-up Resistors: 4.7kΩ
? Communication & Connectivity
- Interface: I2C
- Default I2C Address: 0x3C
- Adjustable I2C Address: No
? Dimensions & Design
- Dimensions: 38mm (L) × 12mm (W)
- Weight: 2g
- Mounting Type: Pin headers (2.54mm pitch)
- Form Factor: General-purpose module
?️ Pinout
- VCC: Power Supply
- GND: Ground
- SDA: I2C Data
- SCL: I2C Clock
? Package Includes
- 1 × 0.91" OLED Display Module
? Applications
- Arduino and ESP8266/ESP32 projects
- Wearable electronics
- Miniature information displays
- Sensor data output panels
