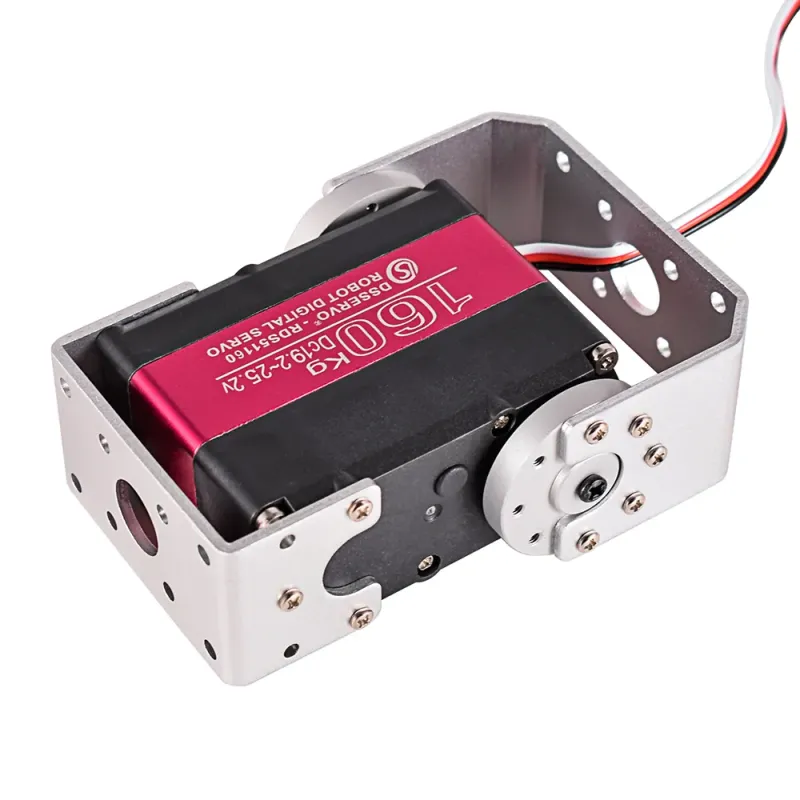

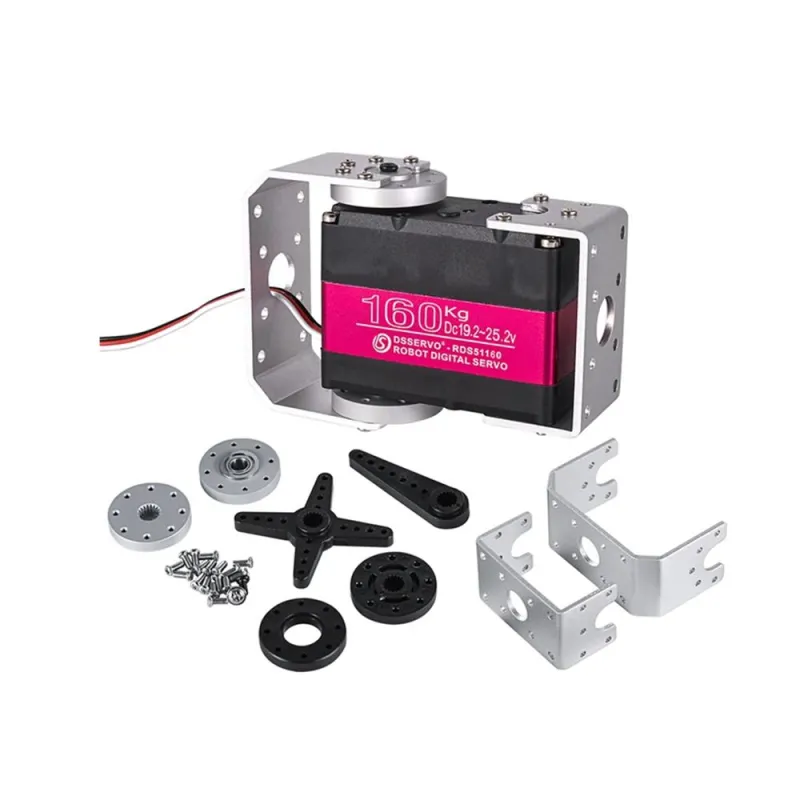

? RDS51160 160kg 180° Ultra High Torque Digital Servo Motor

Take on the heaviest-duty robotic and industrial applications with the RDS51160 servo motor — a monster-class digital servo that delivers up to 185kg·cm of stall torque. Designed for professional use, this powerhouse combines extreme strength, advanced control, and precision engineering in a compact frame.

? Key Features

• ? Rotation Angle: 180°
• ⚡ Stall Torque:
  • 155 kg·cm @ 19.2V
  • 170 kg·cm @ 24V
  • 185 kg·cm @ 25.2V
• ? Operating Speed (No Load):
  • 0.24 sec/60° @ 19.2V
  • 0.21 sec/60° @ 24V
  • 0.19 sec/60° @ 25.2V
• ? Voltage Range: 19.2V – 25.2V
• ? Control System: PWM (Pulse Width Modulation)
• ? Neutral Position: 1500μsec
• ? Dead Band Width: 3μsec
• ? Operating Frequency: 50 – 330Hz
• ? Rotation Direction: Counterclockwise (500–2500μsec)

⚙️ Mechanical Specifications

• ? Size: 65 × 30 × 48 mm
• ⚖️ Weight: 163g
• ⚙️ Gear Ratio: 357:1
• ? Bearings: Dual ball bearings
• ? Connector Wire: 300 ± 5 mm
• ? Motor Type: 3-pole

?️ Environmental Conditions

• ?️ Operating Temperature: -15°C to 70°C
• ? Storage Temperature: -30°C to 80°C

✅ Ideal For:

• ? Industrial robotic arms and actuators
• ? Heavy-duty RC vehicles and crawlers
• ? Precision motion control applications
• ? Engineering prototypes requiring extreme torque and accuracy

With its rugged build, smooth motion, and ultra-high torque, the RDS51160 stands at the top of its class. If your project demands unstoppable strength with precise control, this servo is your ultimate solution.
