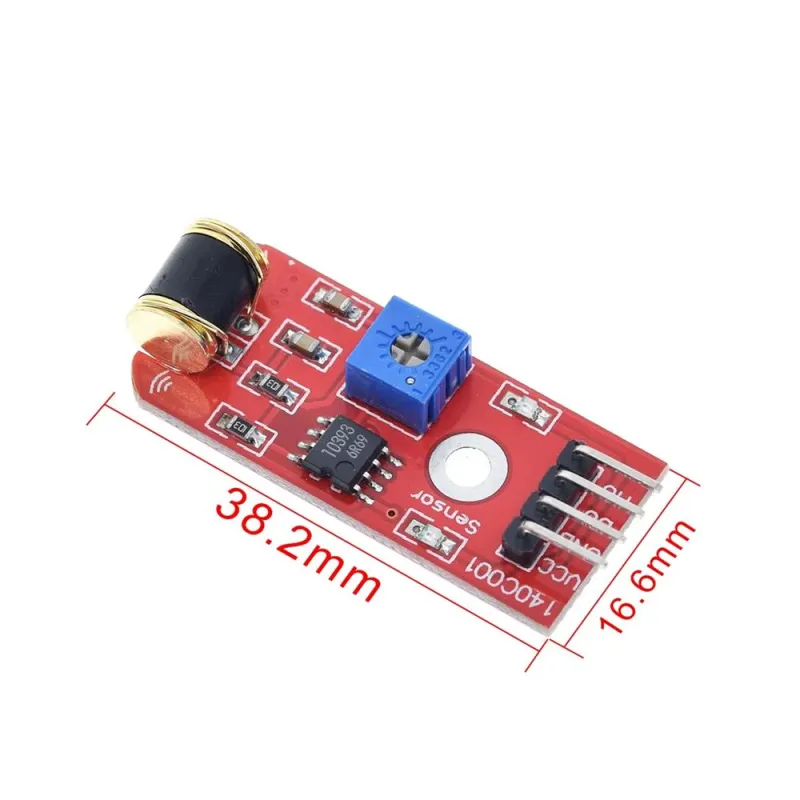

801S Vibration Sensor Module

The 801S Vibration Sensor Module is a versatile and highly sensitive component designed for detecting vibrations and physical shocks in electronic projects. Operating on a low voltage of DC 3–5V, it is suitable for a wide range of microcontroller applications, including Arduino-based systems.

Key Features:

• Operating Voltage: DC 3V – 5V
• Signal Outputs: Both analog and TTL-level digital output
• Status Indicator: Built-in LED shows output status (LED off when vibration is detected)
• Adjustable Sensitivity: Fine-tune vibration detection threshold using onboard potentiometer
• Non-Directional Sensing: Detects vibrations from any direction
• Easy Installation: Mounting holes for flexible and secure placement

Applications:

• Anti-theft alarm systems
• Electronic locking mechanisms
• Vibration monitoring in mechanical equipment
• Counting systems (e.g., shooting range bull’s-eye impact detection)
• General-purpose vibration and motion detection

This sensor is perfect for DIY electronics enthusiasts and developers needing a reliable way to detect motion or shocks in a system. Its combination of digital and analog outputs provides flexibility for a variety of projects.
