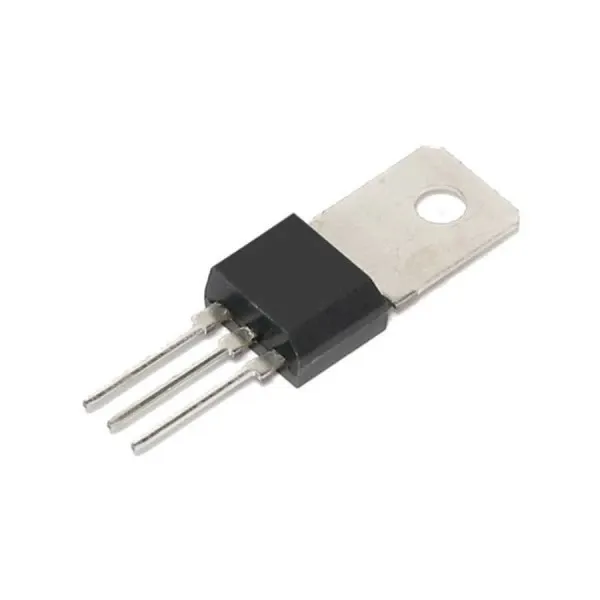

BD862 Transistor NPN 45V 4A 15W SOT-128 Original Siemens
3.40RON
Ex Tax: 3.40RON
- Stock: In Stock
- Model: A0465.BD862
Your orders placed until 16:30 on weekdays are shipped on the same day.
BD862 Transistor NPN 45V 4A 15W SOT-128 Original Siemens
| Type | Transistor Silicon NPN |
| Manufacturer | Siemens Semiconductors |
| Case | SOT128 |
| Vbr CEO | 45 |
| Max. PD (W) | 15 |
| Min hFE | 750 |
| Ic Max. (A) | 4.0 |
| @Ic (test) (A) | 1.5 |
| Icbo Max. @Vcb Max. (A) | 200u |
| Mat. | Silicon Logic |
| Polarity | NPN |
| Derate Above 25°C | 120m |
| Trans. Freq (Hz) Min. | 1.0M |
| @VCE (test) | 3.0 |
| Oper. Temp (°C) Max. | 150 |
| Pinout Equivalence Number | 3-35 |
| Surface Mounted Yes/No | NO |
| Maximum Collector Power Dissipation (Pc) | 15 W |
| Maximum Collector-Base Voltage |Vcb| | 45 V |
| Maximum Collector-Emitter Voltage |Vce| | 45 V |
| Maximum Emitter-Base Voltage |Veb| | 5 V |
| Maximum Collector Current |Ic max| | 4 A |
| Max. Operating Junction Temperature (Tj) | 150 °C |
| Transition Frequency (ft): | 7 MHz |
| Forward Current Transfer Ratio (hFE), MIN | 750 |
